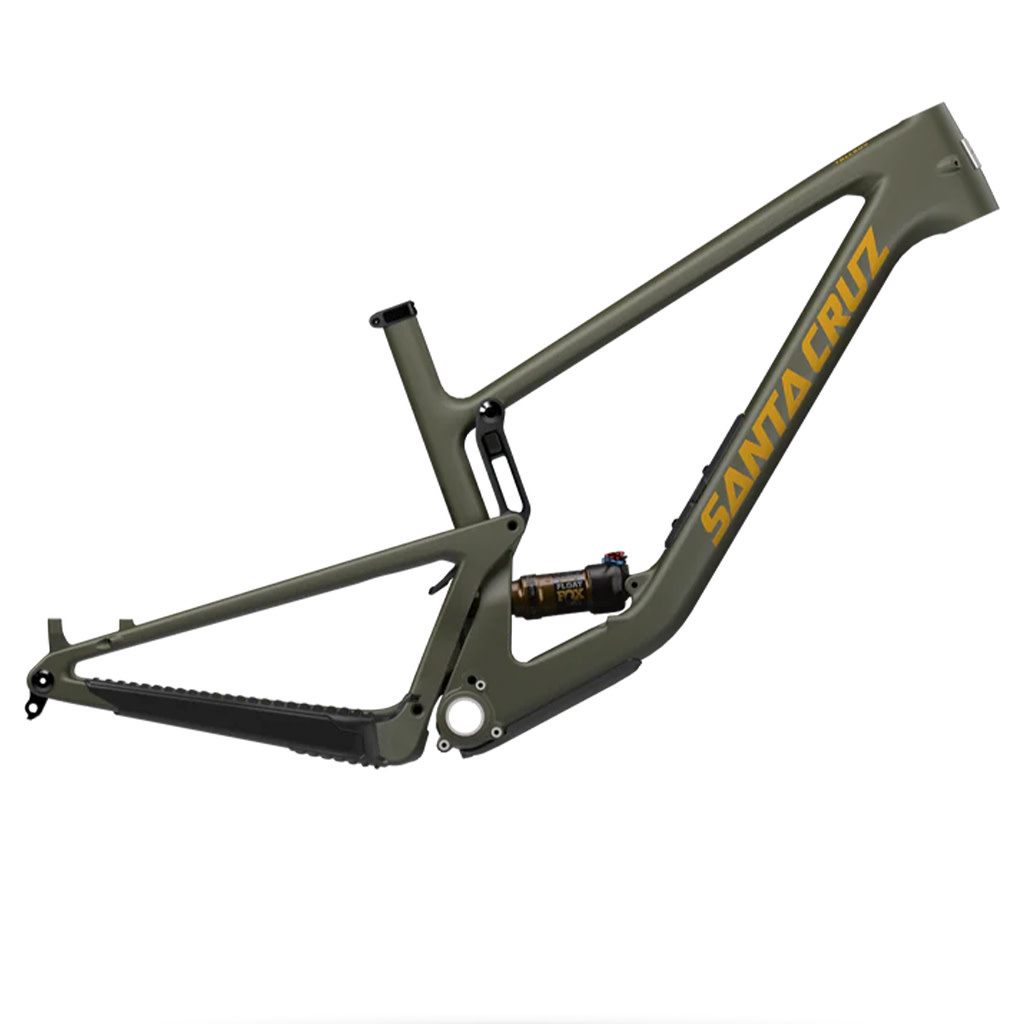

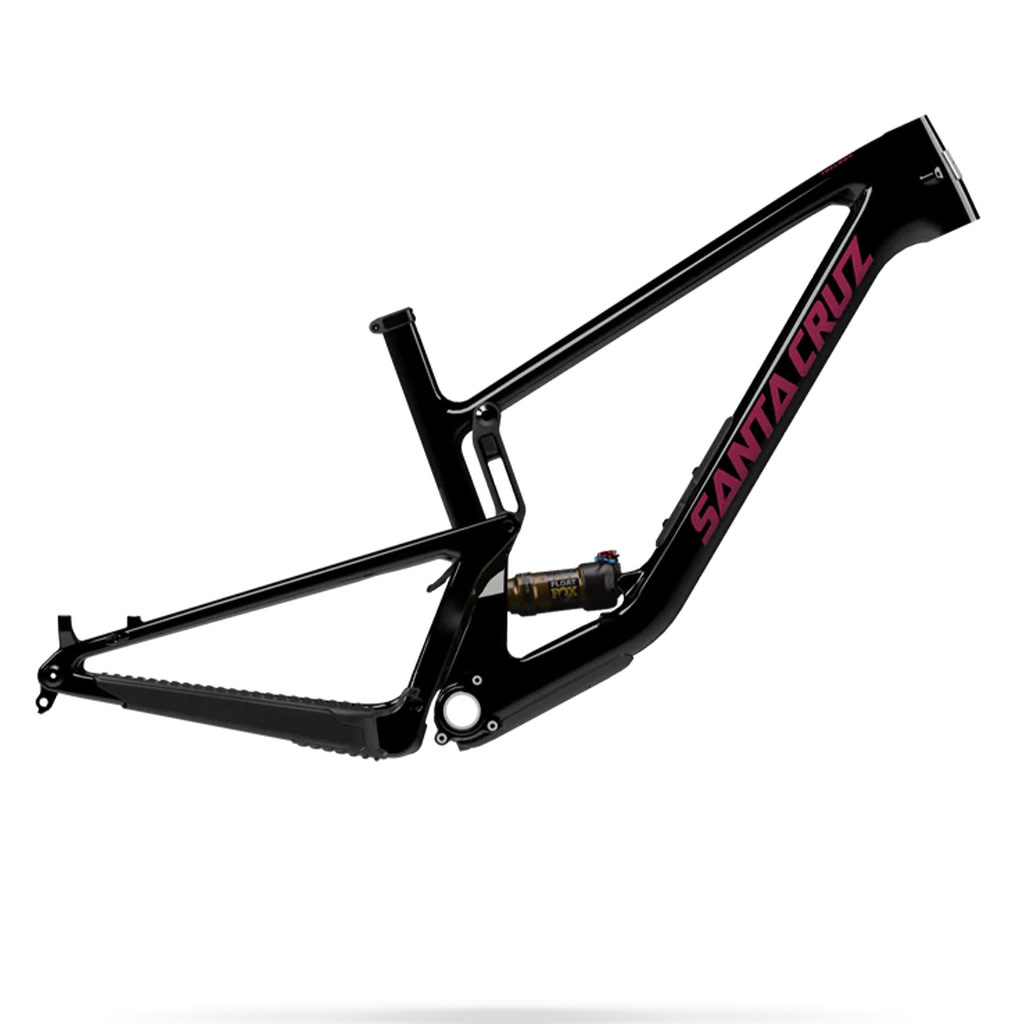

Santa Cruz Tallboy 5 Carbon CC Frame 2025

The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of power hour rides or riding for all-the-hours. The highly refined VPP™ suspension on the Tallboy combines pedaling efficiency and all-out bump-chomping prowess. If ever there was a gravity riders’ XC bike, the Tallboy is it.

Specifications:

• Material  -  Carbon CC
• Travel  -  120mm
• Wheel Size  -  29
• Shock  -  FOX Float Factory, 190x45
• Bottom Bracket Shell  -  73mm Threaded
• Rear Brake Mount  -  PM 180mm
• Shock Length  -  190mm
• Fork Offset  -  44mm
• Front Derailleur Mount  -  No compatibility
• Headset  -  Integrated (IS41/52)
• Max Chainring Size  -  36t
• Max Rotor Size  -  223mm
• Max Tire Clearance  -  2.5"
• Seat Clamp Diameter  -  36.4mm
• Seat Post Diameter  -  31.6mm
• Shock Bushing Size Front  -  30x8
• Shock Bushing Size Rear  -  30x8
• Shock Stroke  -  45mm
• Suspension System  -  VPP
• Water Bottle Mounts  -  1

*Specifications are subject to change withopput notice
