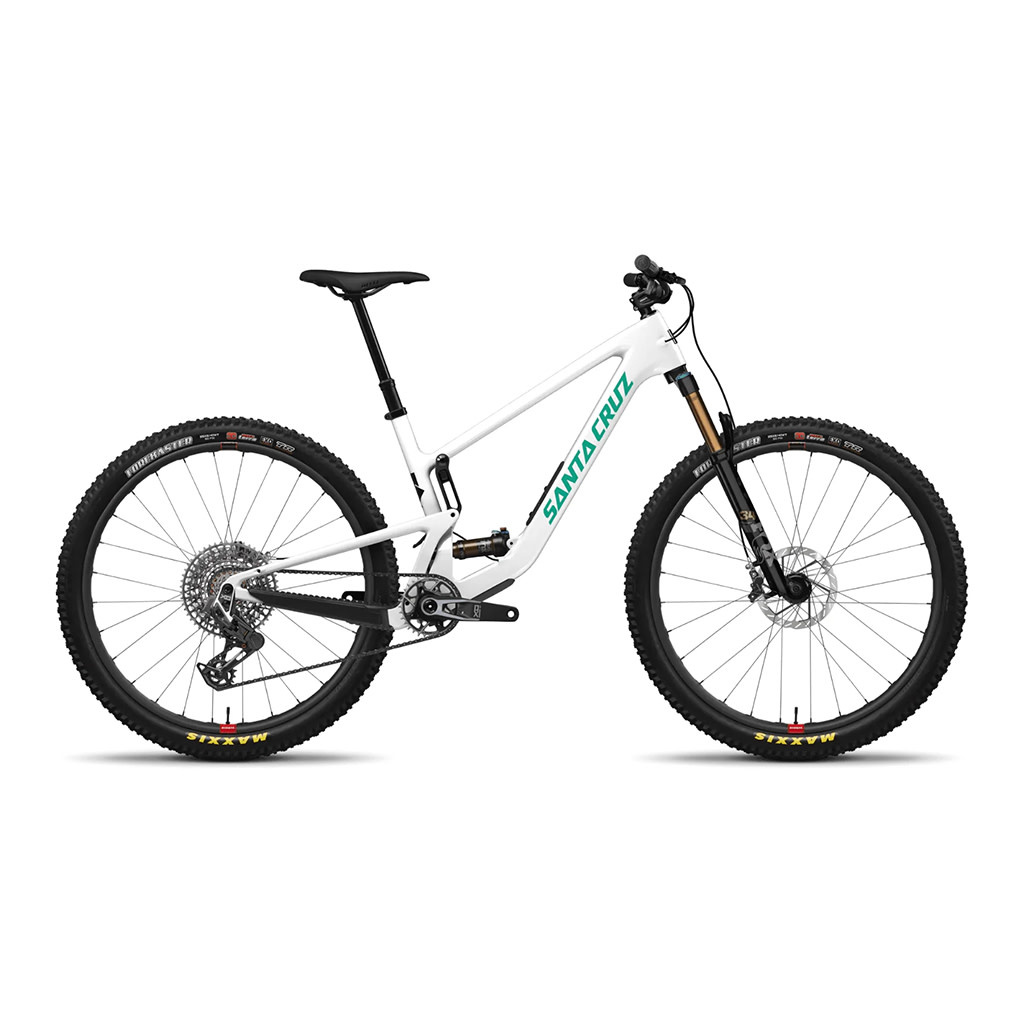

Santa Cruz Tallboy 5 Carbon CC 29 XO AXS Reserve Kit Mountain Bike 2024

The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of power hour rides or riding for all-the-hours. The highly refined VPP™ suspension on the Tallboy combines pedaling efficiency and all-out bump-chomping prowess. If ever there was a gravity riders’ XC bike, the Tallboy is it.

• Material  -  Carbon CC
• Travel  -  120mm
• Weight  -  29.14 lbs / 13.22 kg
• Wheel Size  -  29
• Fork  -  FOX 34 Float Factory, Grip2, 130mm -or- RockShox Pike Ultimate, 130mm

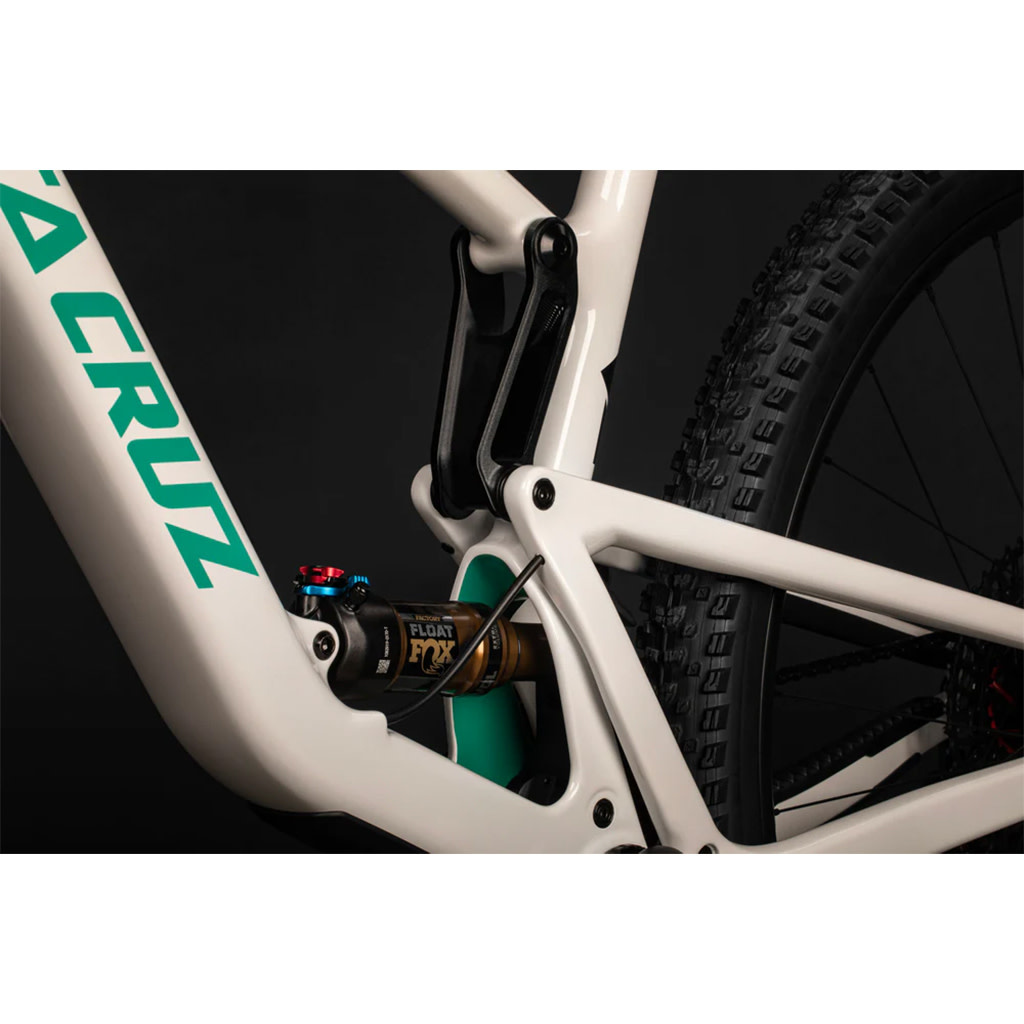

• Shock  -  FOX Float Factory, 190x45
• Bottom Bracket  -  SRAM DUB 73mm MTB Wide BB
• Cassette  -  SRAM X0 Eagle T-Type, 10-52t
• Chain  -  SRAM X0 Eagle T-Type, Flattop, 12spd
• Crankset  -  SRAM X0 Eagle DUB T-Type Crankset, 32t
• Rear Derailleur  -  SRAM X0 Eagle AXS T-Type, 12spd
• Right Shifter  -  SRAM AXS Pod Bridge
• Brakes  -  SRAM Level Silver Stealth 4-Piston
• Front Rotor  -  SRAM HS2 180mm
• Rear Rotor  -  SRAM HS2 180mm
• Grips / Bar Tape  -  Santa Cruz Bicycles House Grips
• Handlebars  -  Santa Cruz 35 Carbon Bar, 800mm
• Headset  -  Cane Creek 40 IS Integrated Headset
• Saddle  -  WTB Silverado Medium, Ti
• Seatpost  -  OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer
• Stem  -  Burgtec Enduro MK3, 42mm
• Front Rim  -  Reserve 30|SL 29"
• Front Hub  -  Industry Nine 1/1, 15x110, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h
• Front Tire  -  Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
• Rear Rim  -  Reserve 30|SL 29"
• Rear Hub  -  Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h
• Rear Tire  -  Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
• Bottom Bracket Shell  -  73mm Threaded
• Rear Brake Mount  -  PM 180mm
• Shock Length  -  190mm
• Fork Compatibility  -  130mm
• Fork Offset  -  44mm
• Headset  -  Integrated (IS41/52)
• Max Chainring Size  -  36t
• Max Tire Clearance  -  2.5"
• Seat Clamp Diameter  -  36.4mm
• Seat Post Diameter  -  31.6mm
• Shock Bushing Size Front  -  30x8
• Shock Bushing Size Rear  -  30x8
• Shock Stroke  -  45mm
• Suspension System  -  VPP
• Water Bottle Mounts  -  1

* Specifications are subject to change without notice
