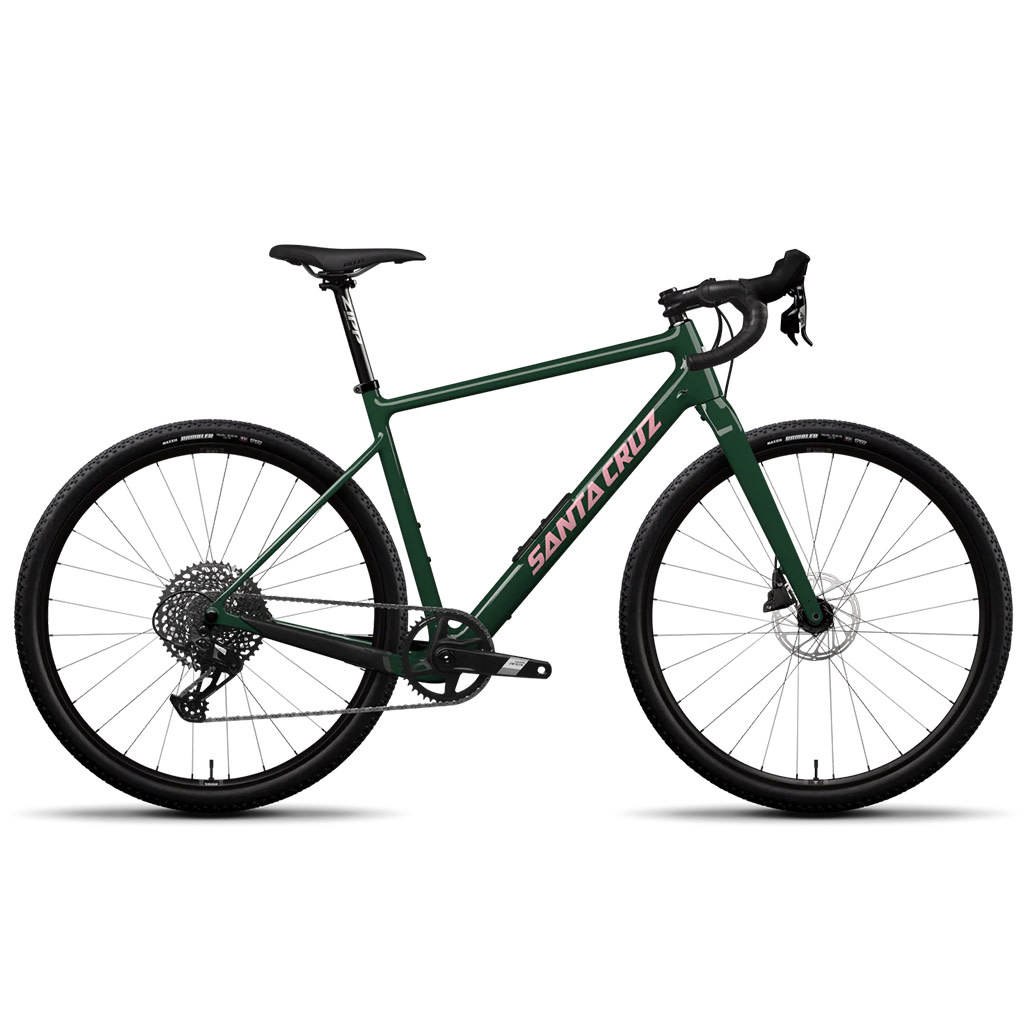

Santa Cruz Stigmata 4 Carbon CC 700c Apex Kit Gravel Bike 2025

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

* Specifications

• Material  -  Carbon CC
• Frame  -  Carbon CC Gravel
• Weight  -  20.86lbs / 9.46kg
• Wheel Size  -  700c

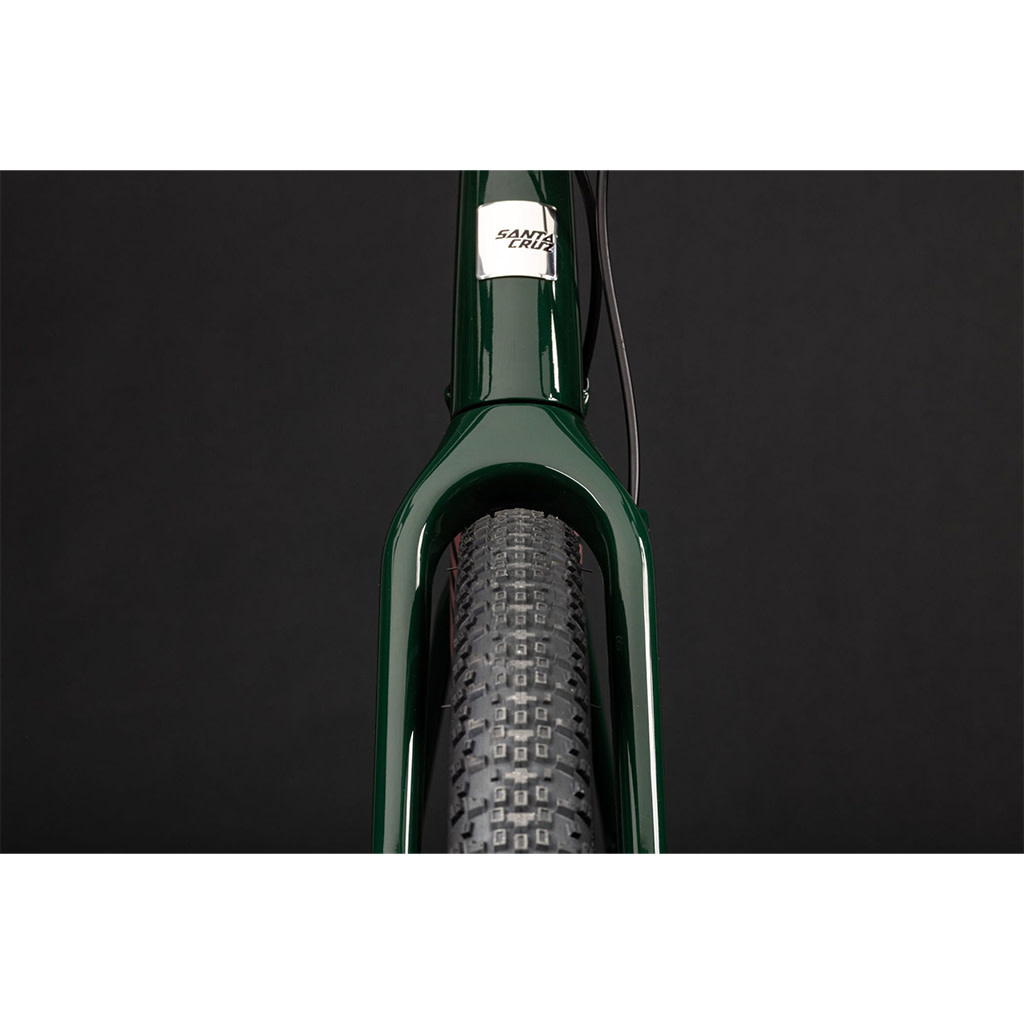

• Fork  -  Carbon
• Shock  -  N/A
• Bottom Bracket  -  SRAM DUB 68mm Road Wide BB

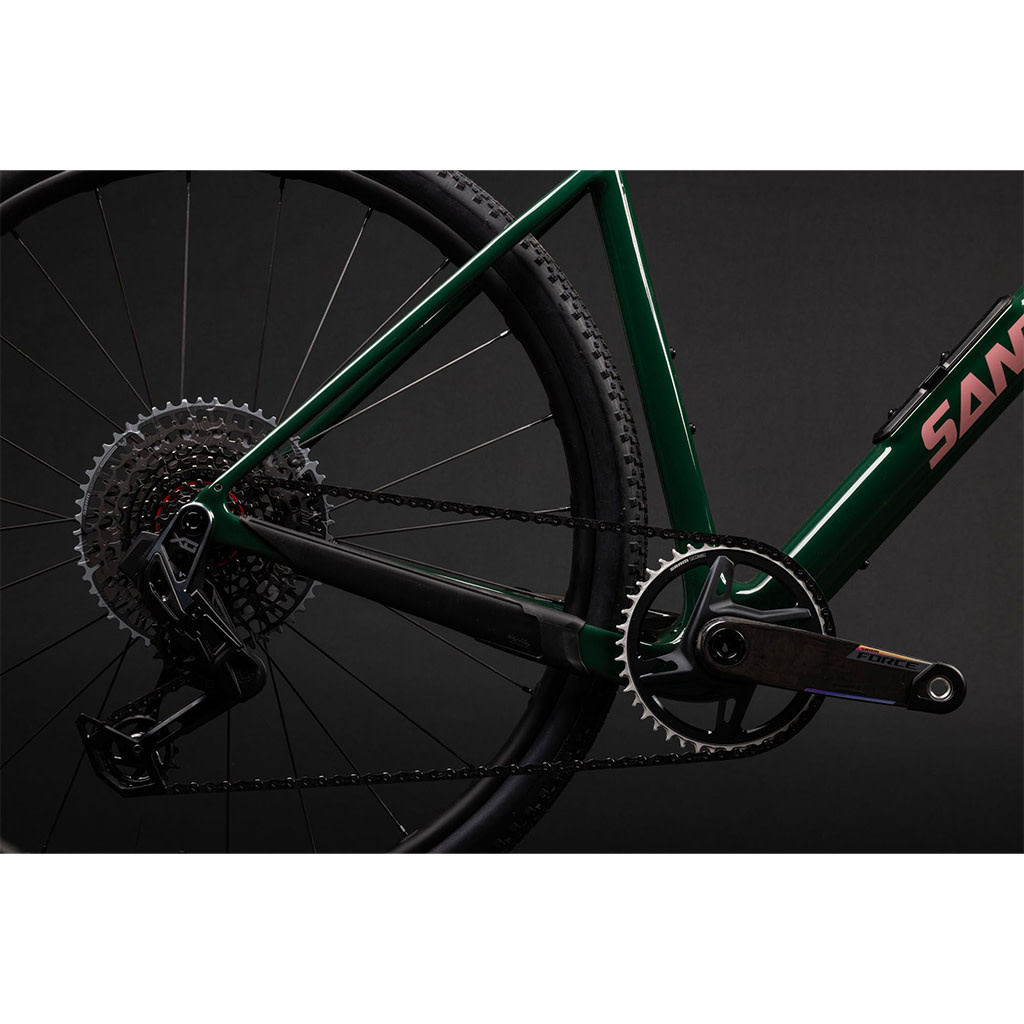

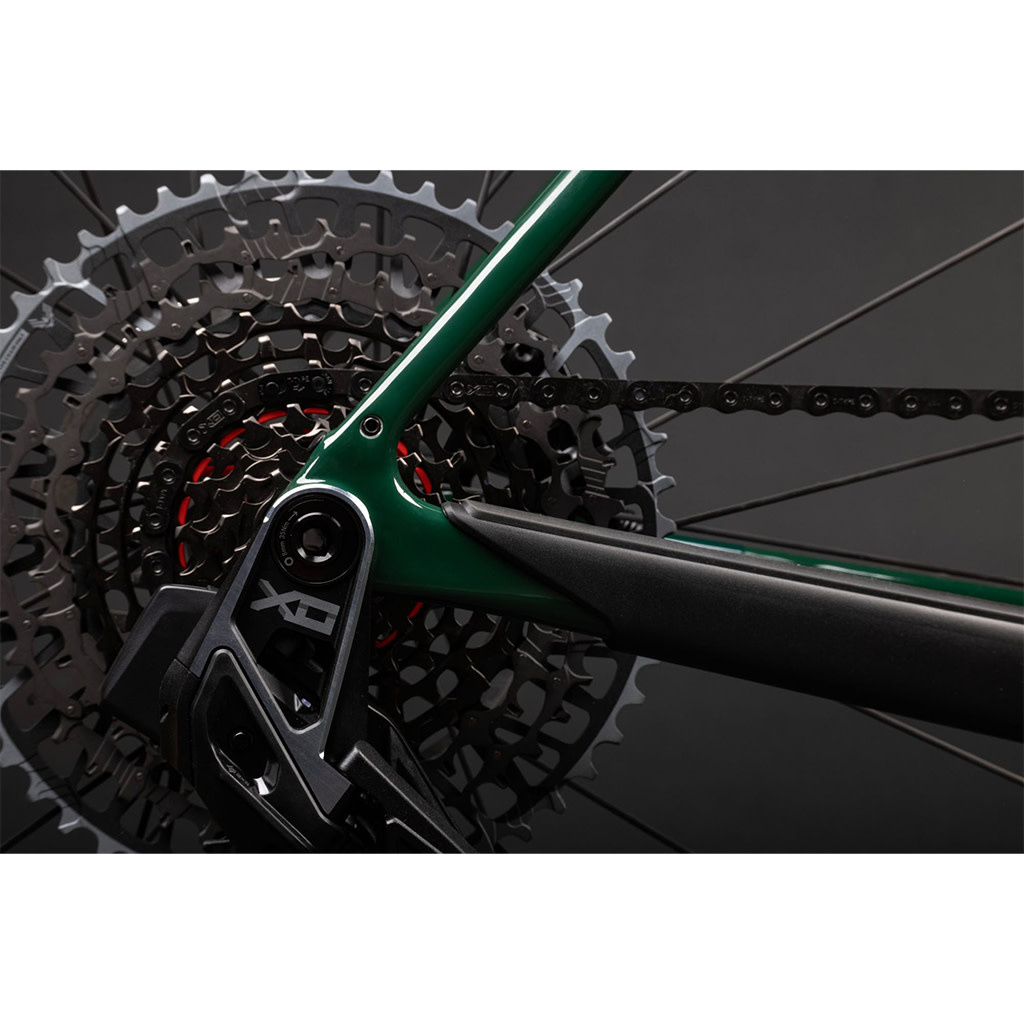

• Cassette  -  SRAM XG1275 Eagle, 12spd, 10-50t
• Chain  -  SRAM SX Eagle, 12spd
• Chainguide  -  N/A

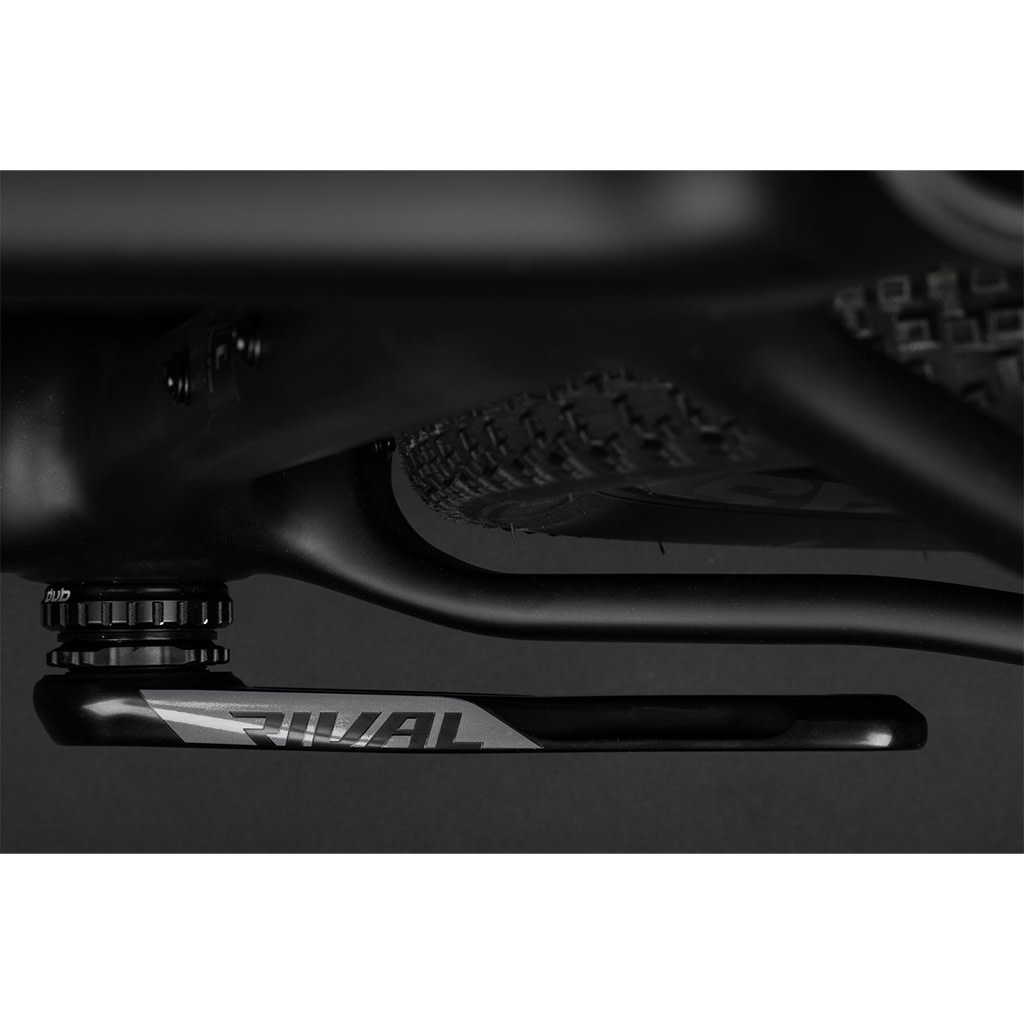

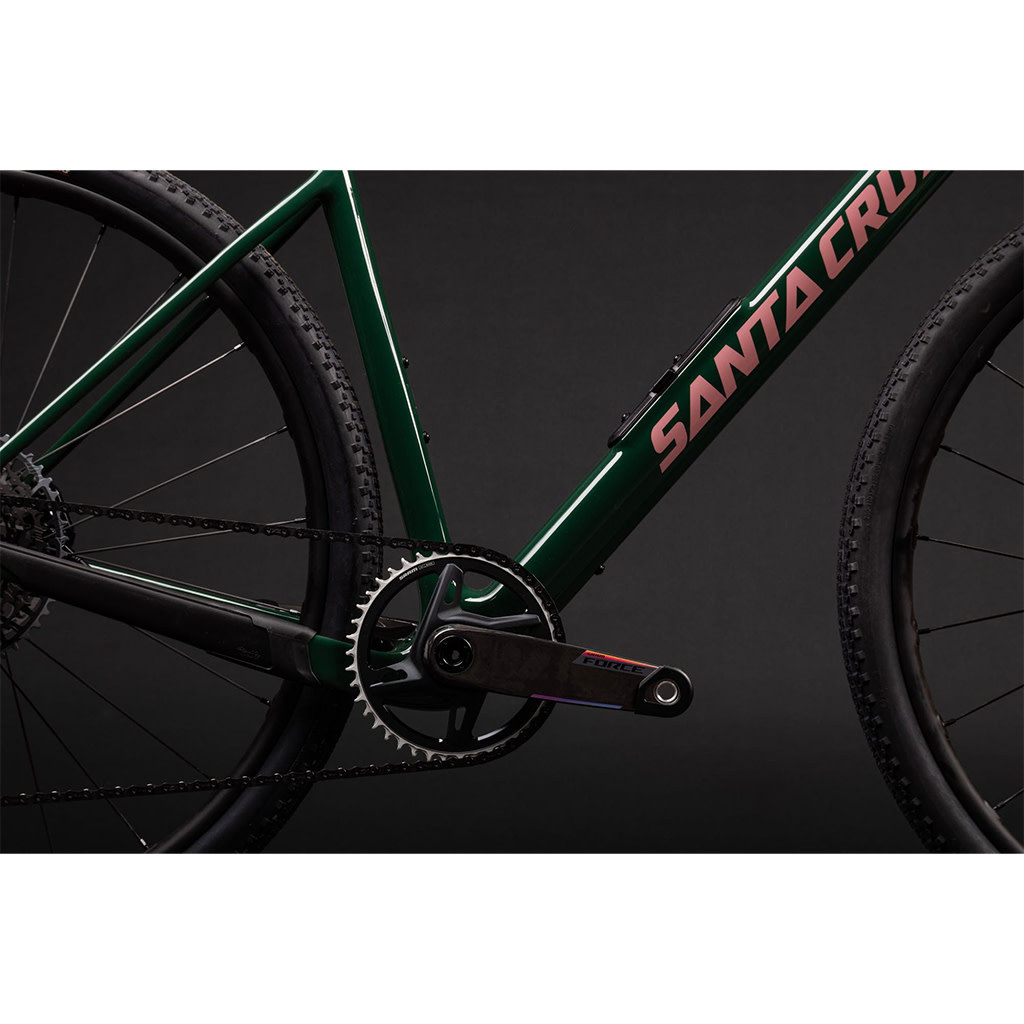

• Crankset-- --SRAM Apex, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
• Rear Derailleur  -  SRAM Apex Eagle, 12spd
• Right Shifter  -  SRAM Apex
• Brakes  -  SRAM Apex
• Front Rotor  -  SRAM Centerline, Centerlock, 160mm
• Rear Rotor  -  SRAM Centerline, Centerlock, 160mm
• Grips / Bar Tape  -  Velo Bar Tape
• Handlebars  -  Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
• Headset  -  FSA IS-2/47/42 ACB
• Saddle  -  WTB Silverado Medium, CroMo
• Seatpost  -  Zipp Service Course, 27.2 All Sizes: 350mm
• Stem  -  Zipp Service Course Stem All Sizes: 70mm
• Front Rim  -  WTB ASYM i25 28h 700c
• Front Hub  -  DT Swiss 370, 12x100, Centerlock, 28h
• Front Tire  -  Maxxis Rambler, 700x45c, DC, EXO
• Rear Rim  -  WTB ASYM i25 28h 700c
• Rear Hub  -  DT Swiss 370, 12x142, XDr, Centerlock, 28h
• Rear Tire  -  Maxxis Rambler, 700x45c, DC, EXO
• Valves  -  Reserve Fillmore Valves
• Bottom Bracket Shell  -  Threaded 68mm
• Rear Brake Mount  -  160mm FM
• Fork Axle to Crown  -  430mm
• Fork Compatibility  -  40mm
• Fork Offset  -  45mm
• Front Derailleur Mount  -  Clamp On
• Headset  -  Integrated (IS41/52)
• Max Chainring Size  -  42t (1x) | 50t (2x)
• Max Tire Clearance  -  50mm (1x) | 45mm (2x)
• Rear Spacing  -  142mm
• Seat Clamp Diameter  -  31.8mm
• UDH Compatible  -  Yes
• Water Bottle Mounts  -  3

* Specifications are subject to change without notice
