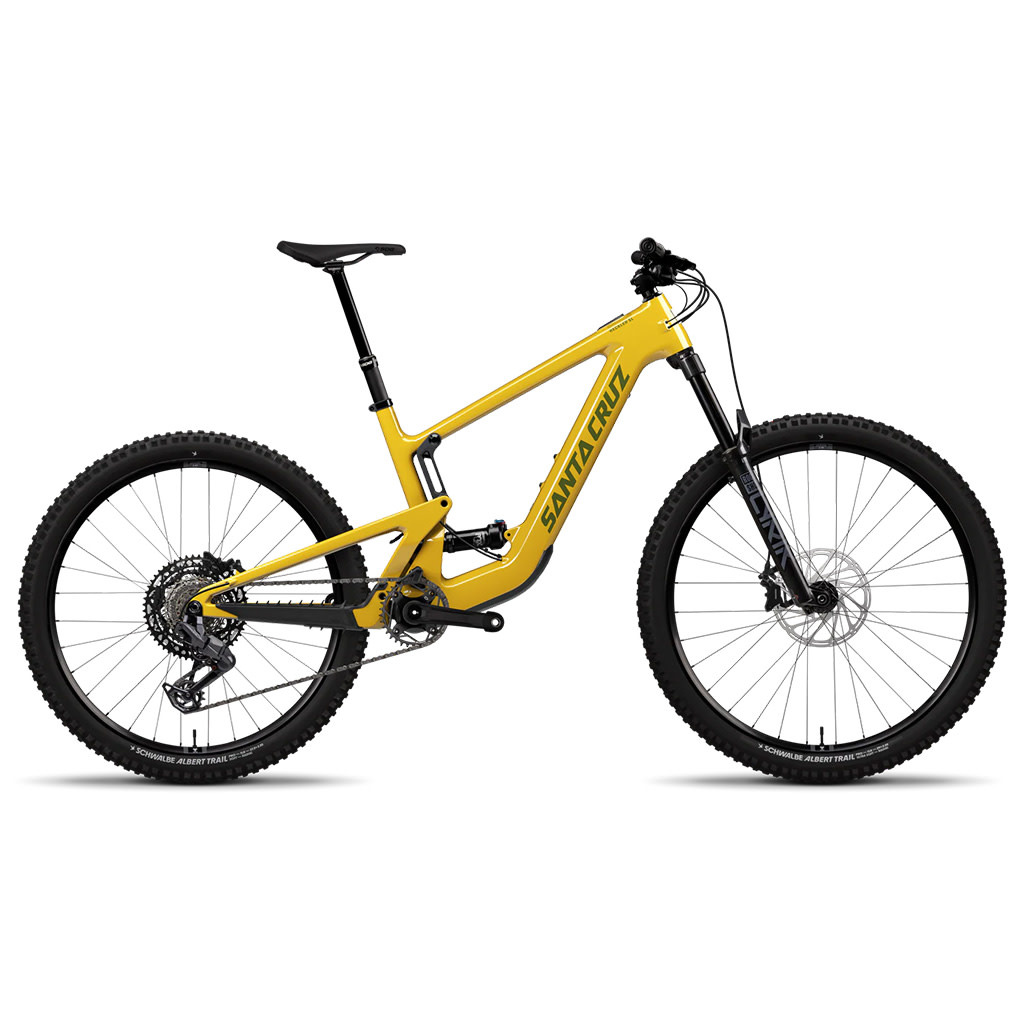

Santa Cruz Heckler SL 1.1 Carbon C MX 70 Kit E-Mountain Bike 2026

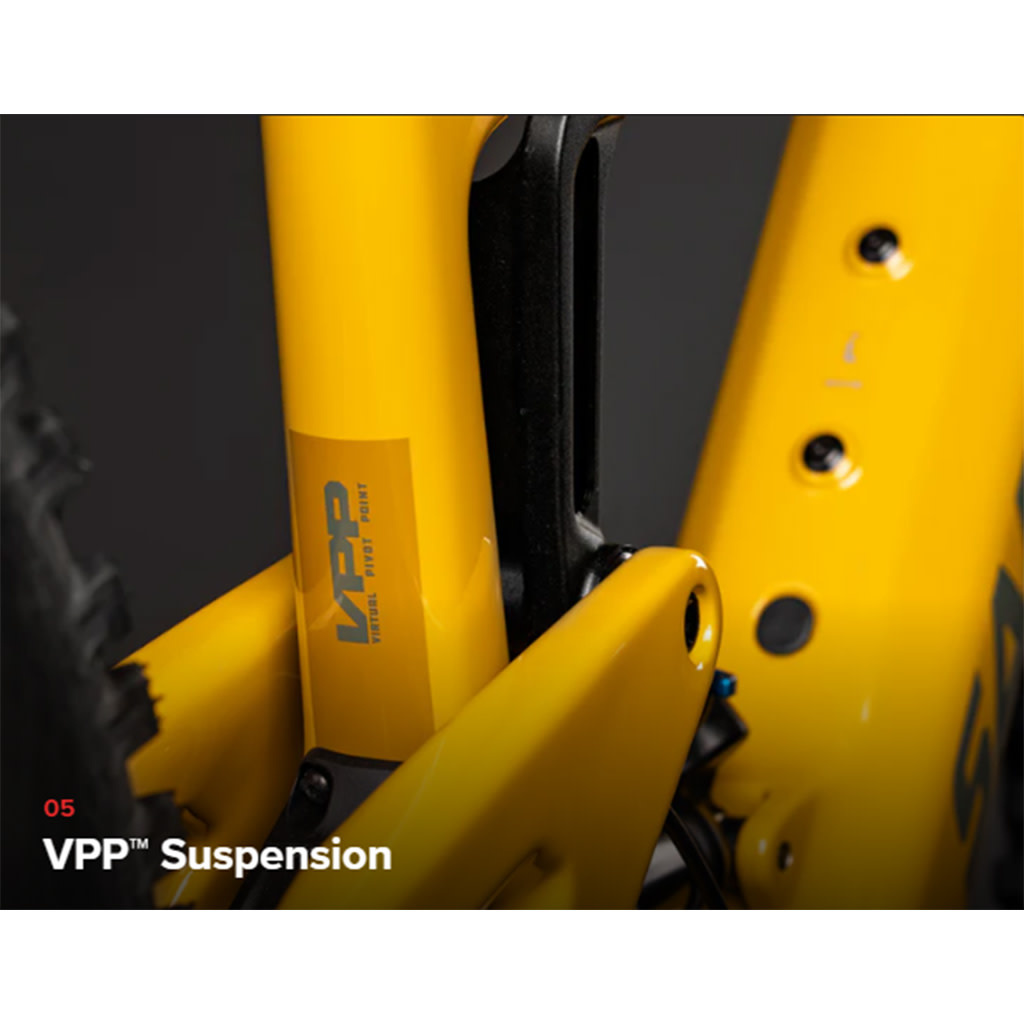

A sneaky ebike that’s lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

Specifications

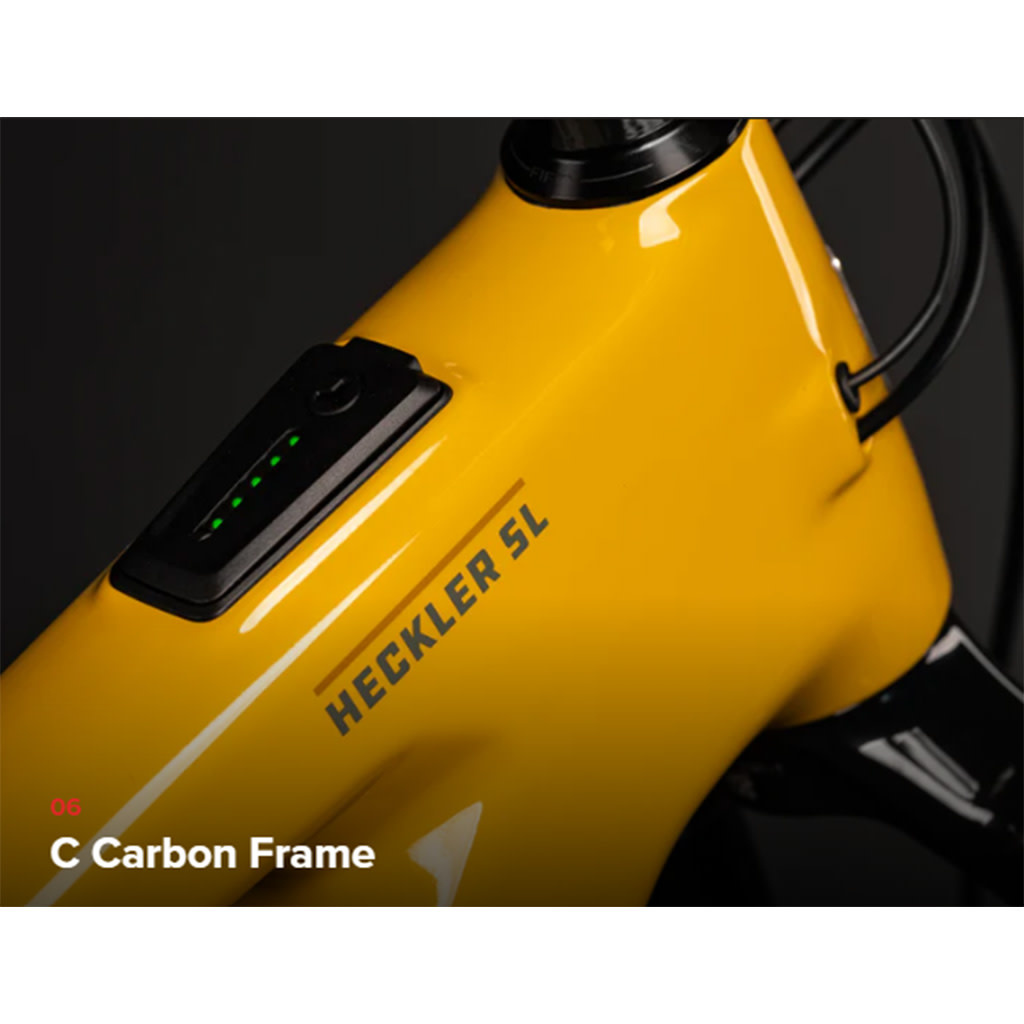

• Frame  -  Carbon C MX 150mm Travel VPP™
• Travel  -  160mm
• Weight  -  43.98lbs / 19.95 kg
• Wheel Size  -  MX
• Fork  -  RockShox Lyrik Base, 160mm

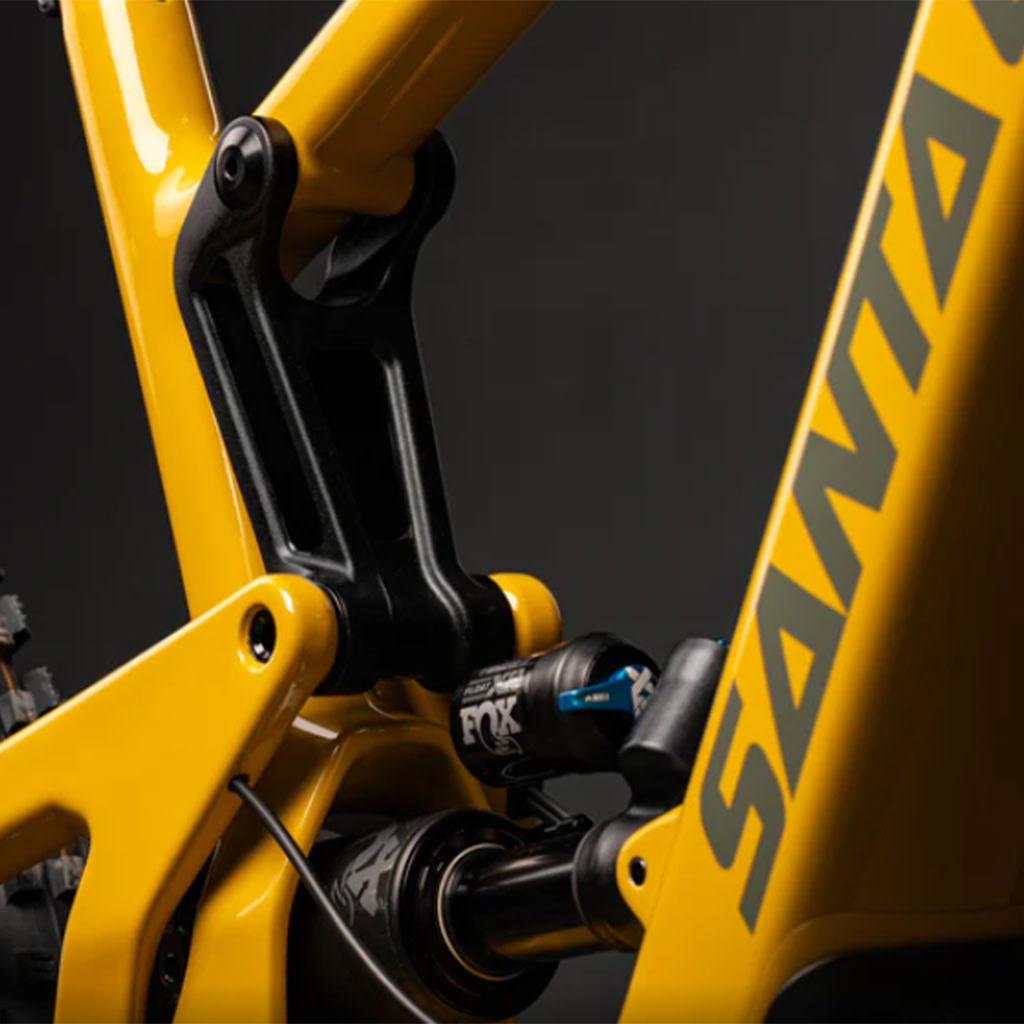

• Shock  -  FOX Float Performance, 210x55
• Bottom Bracket  -  N/A
• Cassette  -  SRAM XS 1270 Eagle T-Type, 10-52t
• Chain  -  SRAM 70 Eagle T-Type, Flattop, 12spd
• Chainguide  -  OneUp Chainguide
• Crankset  -  E13 Helix eSpec, 165mm

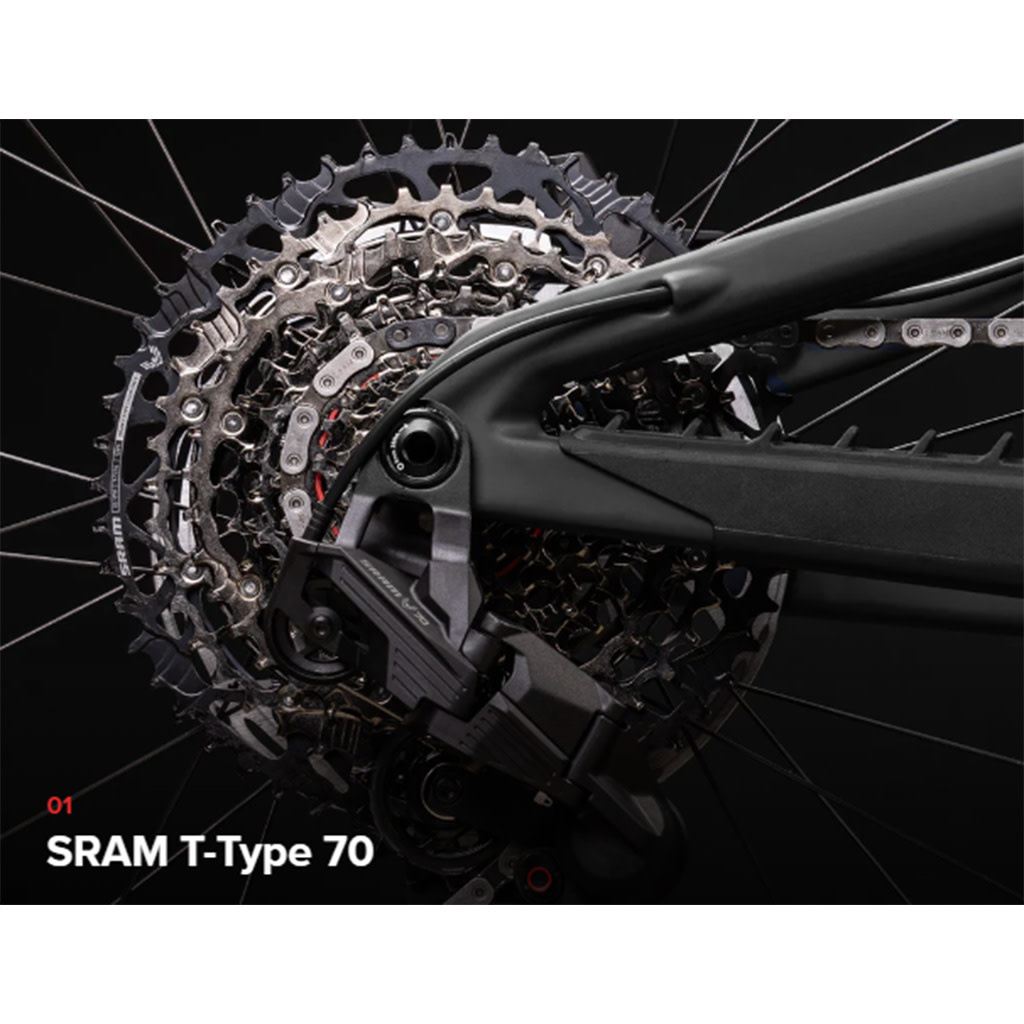

• Rear Derailleur  -  SRAM 70 Eagle T-Type, 12spd
• Right Shifter  -  SRAM 90 Eagle T-Type, Single Click, 12spd
• Front Brakes  -  SRAM DB8
• Front Rotor  -  SRAM Centerline, 200mm
• Rear Rotor  -  SRAM Centerline, 200mm
• Grips / Bar Tape  -  Santa Cruz Bicycles House Grips
• Handlebars  -  Burgtec Alloy Bar -or- e13 TRS Base Bar
• Headset  -  Cane Creek 10 IS Integrated Headset
• Saddle  -  SDG Bel-Air V3 Max
• Seatpost  -  SDG Tellis Dropper, 31.6
• Stem  -  OneUp Enduro Stem, 42mm -or- e13 TRS Base Stem, 40mm
• Front Rim  -  WTB ST Tough 30
• Front Hub  -  SRAM MTH 716, 15x110, 6-Bolt, 32h
• Front Tire  -  Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
• Rear Rim  -  WTB ST Tough 30
• Rear Hub  -  SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
• Rear Tire  -  Schwalbe Albert, 27.5x2.5, Trail Radial Soft

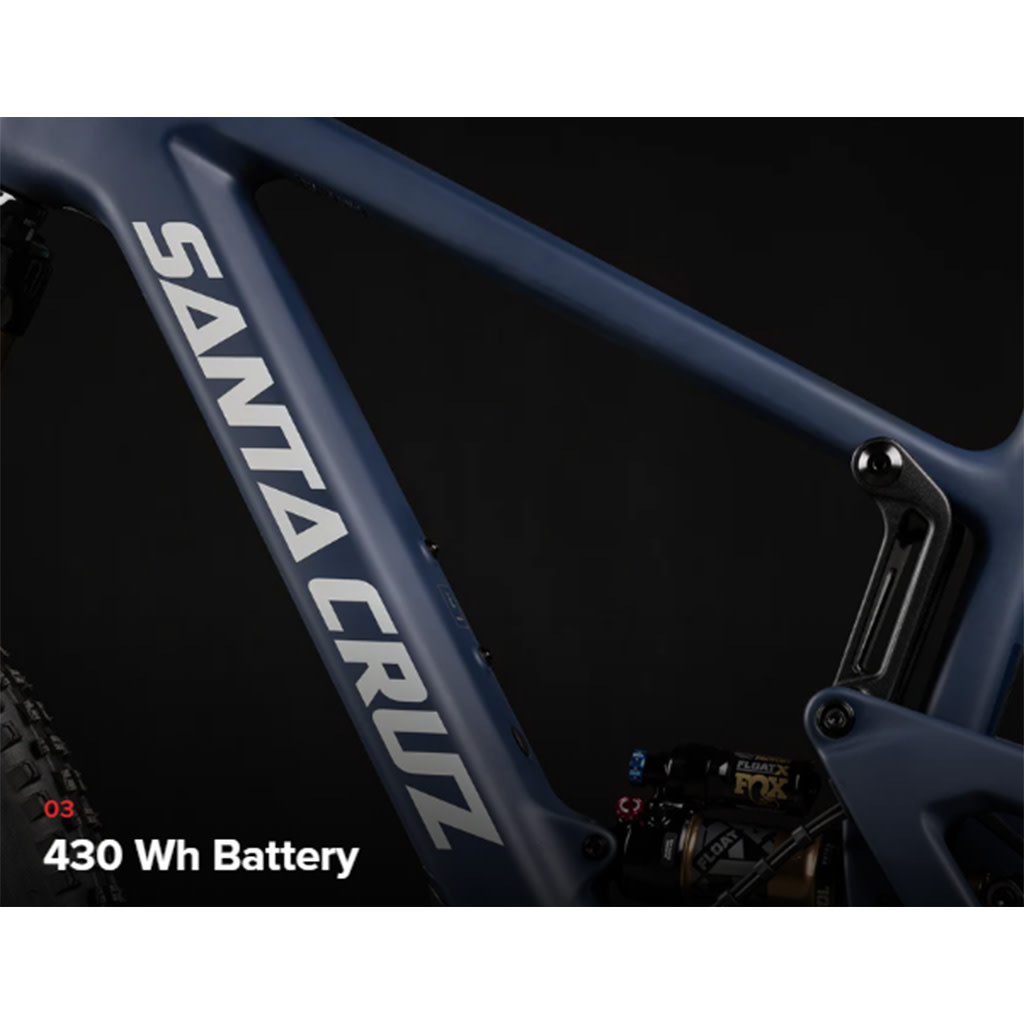

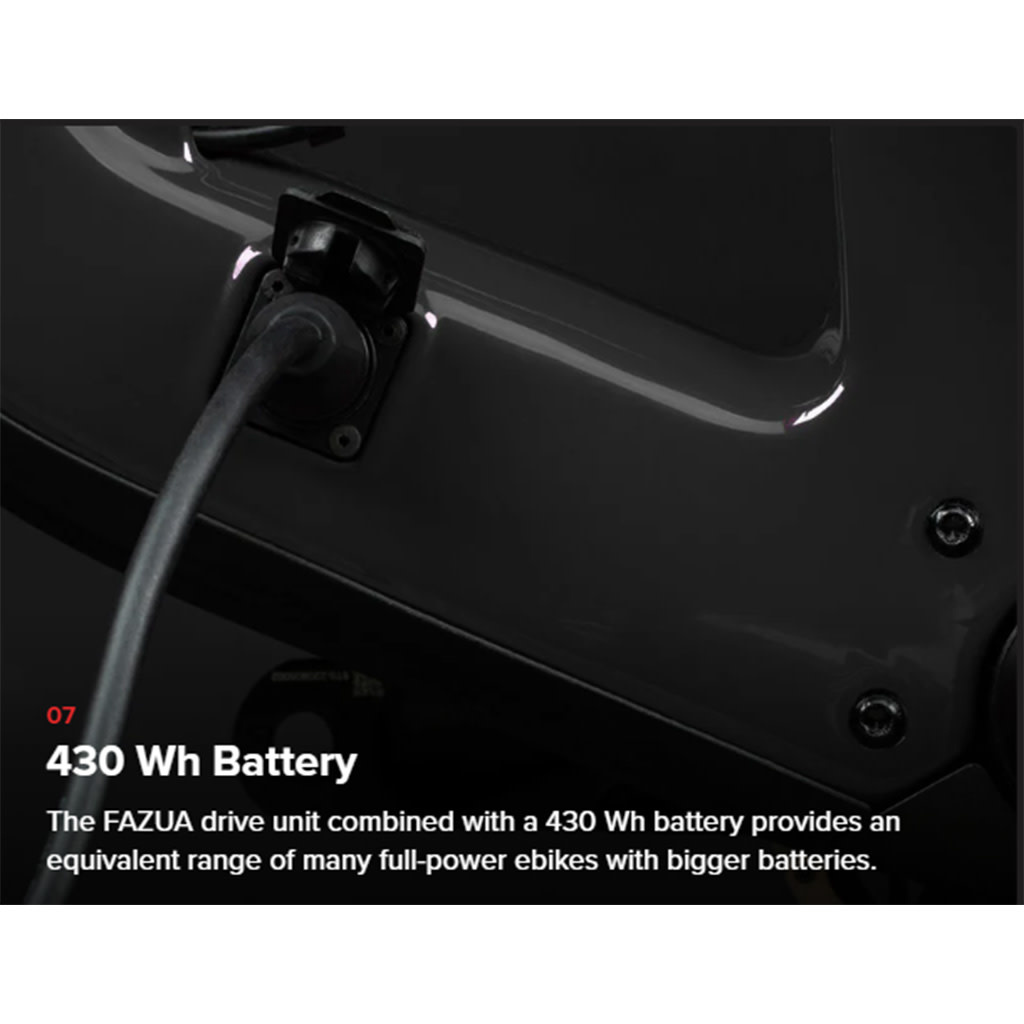

• Battery  -  Fazua Energy 430Wh Integrated Battery

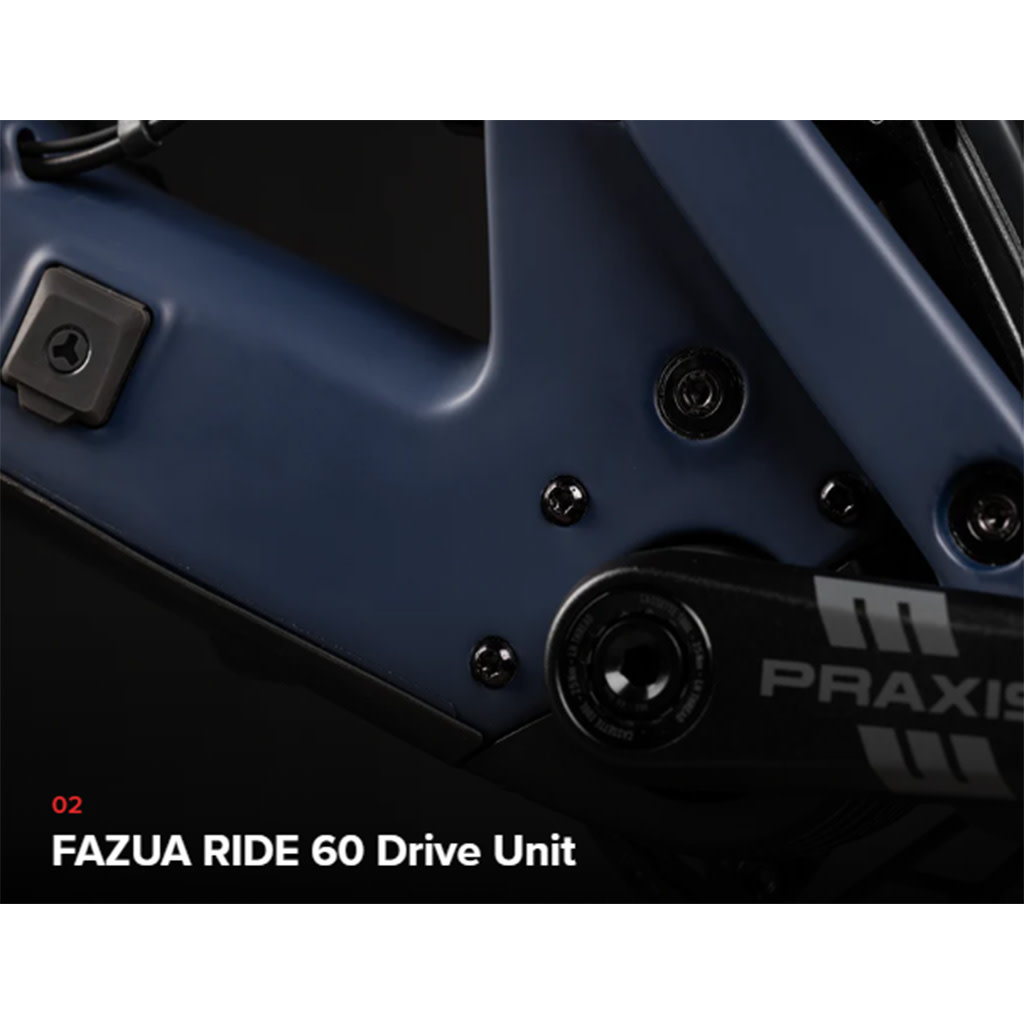

• Drive Unit  -  Fazua Ride 60
• Bottom Bracket Shell  -  Fazua DU w/ E-TOR spindle
• Rear Brake Mount  -  PM 200mm
• Shock Length  -  210mm
• Fork Axle to Crown  -  571mm
• Fork Offset  -  44mm
• Front Derailleur Mount  -  No
• Headset  -  IS 41 / IS52
• Max Chainring Size  -  36t
• Max Rotor Size  -  220mm
• Max Tire Clearance  -  (May vary according to tire and rim model) 2.6"
• Rear Spacing  -  148mm
• Shock Bushing Size Front  -  30x8
• Shock Bushing Size Rear  -  30x8
• Shock Stroke  -  55mm
• UDH Compatible  -  Yes

* Specifications are subject to change without notice
