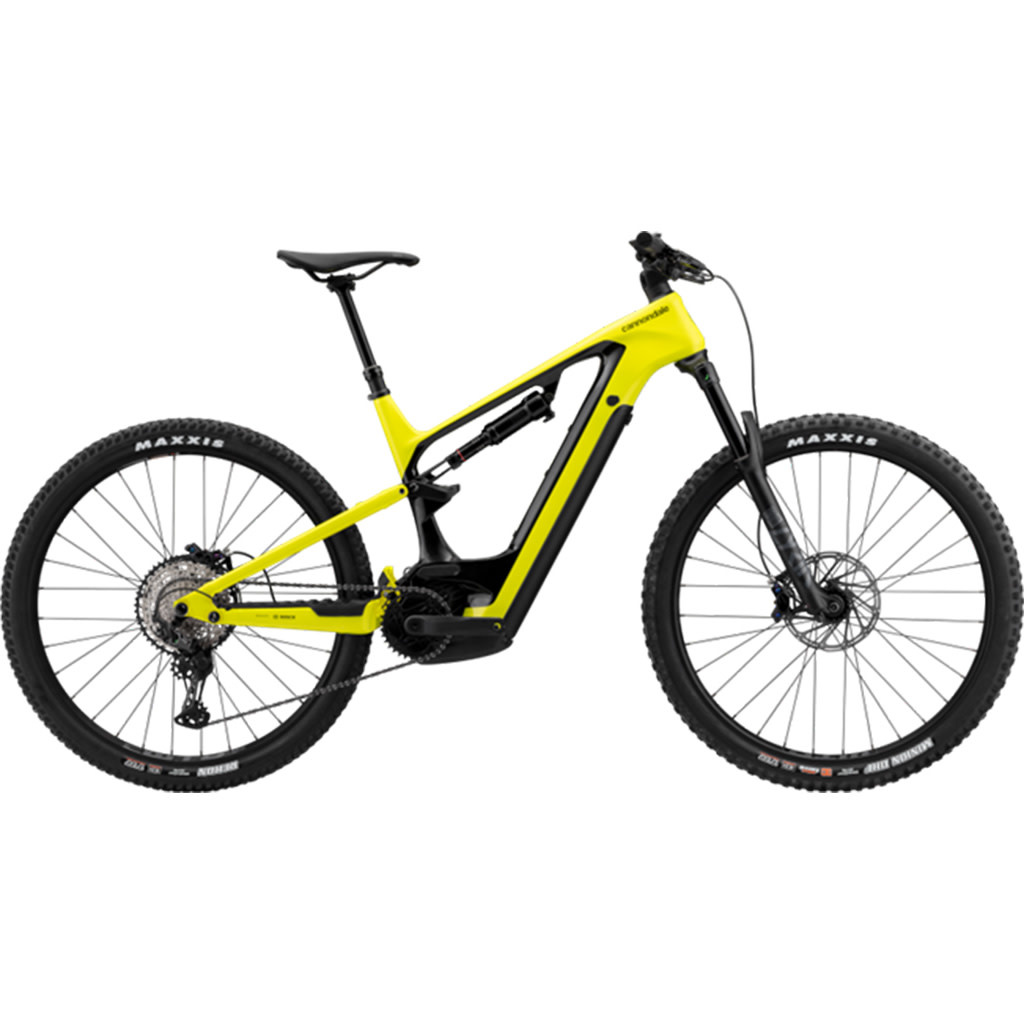

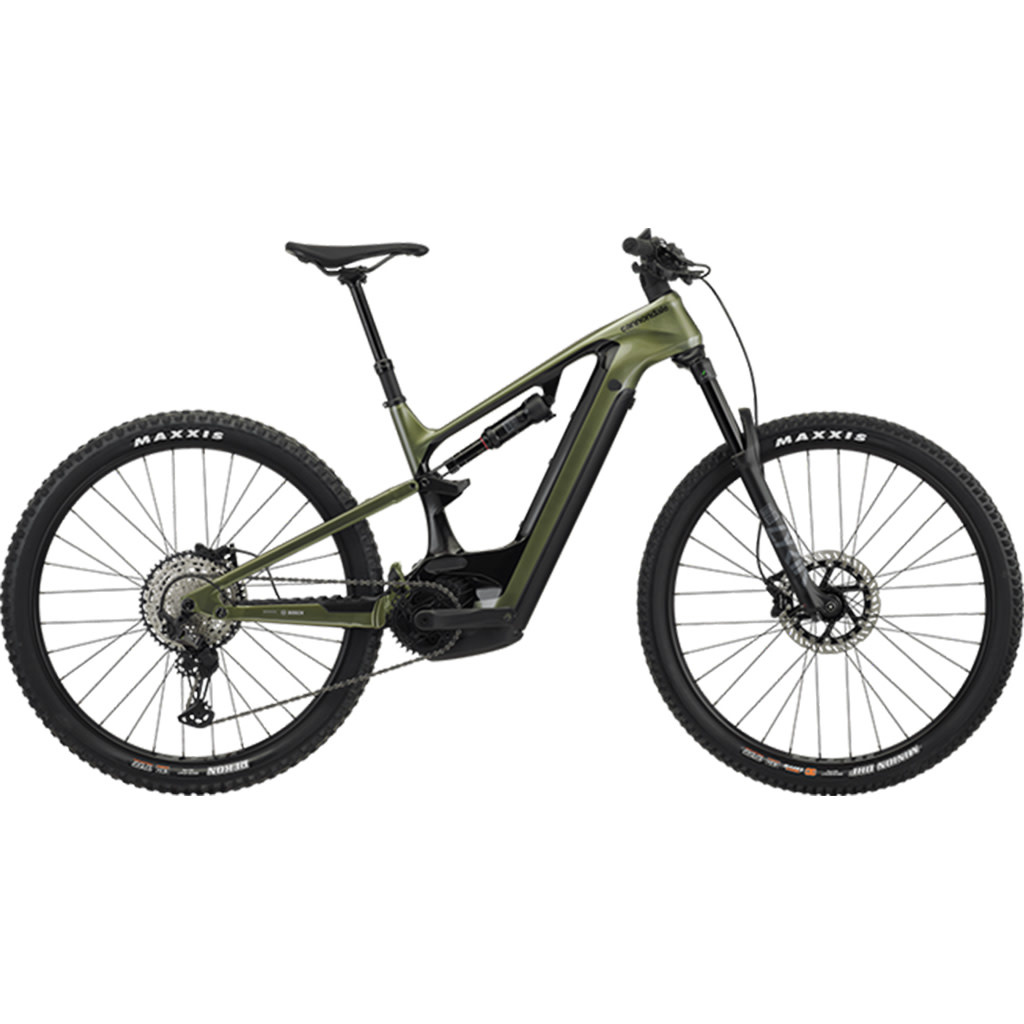

Cannondale Moterra Carbon 2 Mountain E-Bike 2025

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Specifications:

• Frame  -  Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
• Fork  -  RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
• Headset  -  Acros integrated sealed bearing, tapered
• Rear Shock  -  RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
• Drive Unit  -  Bosch Performance Line CX 250W
• Battery  -  Bosch PowerTube, 750Wh
• Charger  -  Bosch 4A
• Display  -  Bosch Kiox 300 w/ LED remote
• Certifications  -  UL 2849
• Rear Derailleur  -  Shimano XT
• Shifters  -  Shimano SLX, 12-speed
• Chain  -  Shimano SLX, 12-speed
• Crank  -  FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
• Rear Cogs  -  Shimano SLX, 10-51, 12-speed
• Brakes  -  Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
• Brake Levers  -  Shimano MT501 hydraulic disc
• Rims  -  WTB ST i30 TCS, 32h, tubeless ready
• Spokes  -  DT Swiss Champion
• Tire Size  -  2.6
• Wheel Size  -  29
• Hubs  -  (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
• Tires  -  (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
• Front Tire  -  Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
• Rear Tire  -  Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
• Handlebar  -  Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
• Stem  -  Cannondale 2, 6061 Alloy, 35mm, 0°
• Grips  -  Fabric FunGuy
• Saddle  -  Fabric Scoop Shallow Sport, steel rails
• Seatpost  -  Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
• Extra  -  Pre-installed light cable. (Note: this model is not compatible with Bosch Range Extender)

*Specifications are subject to change without notice
