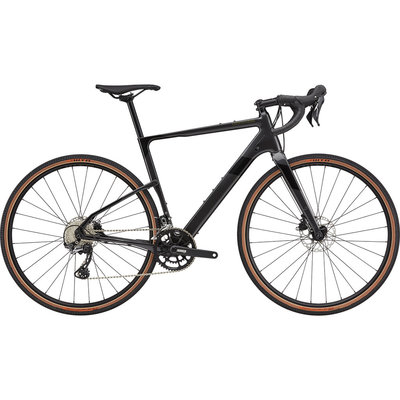

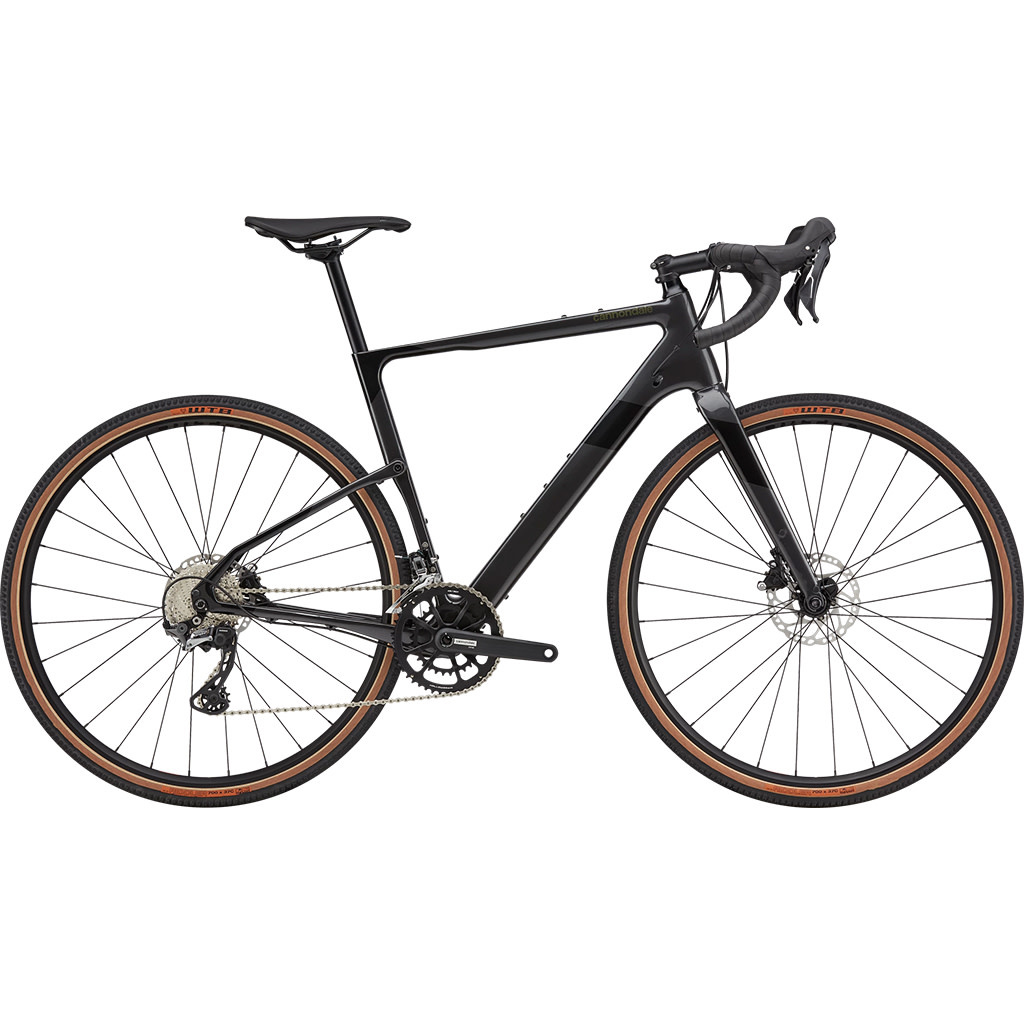

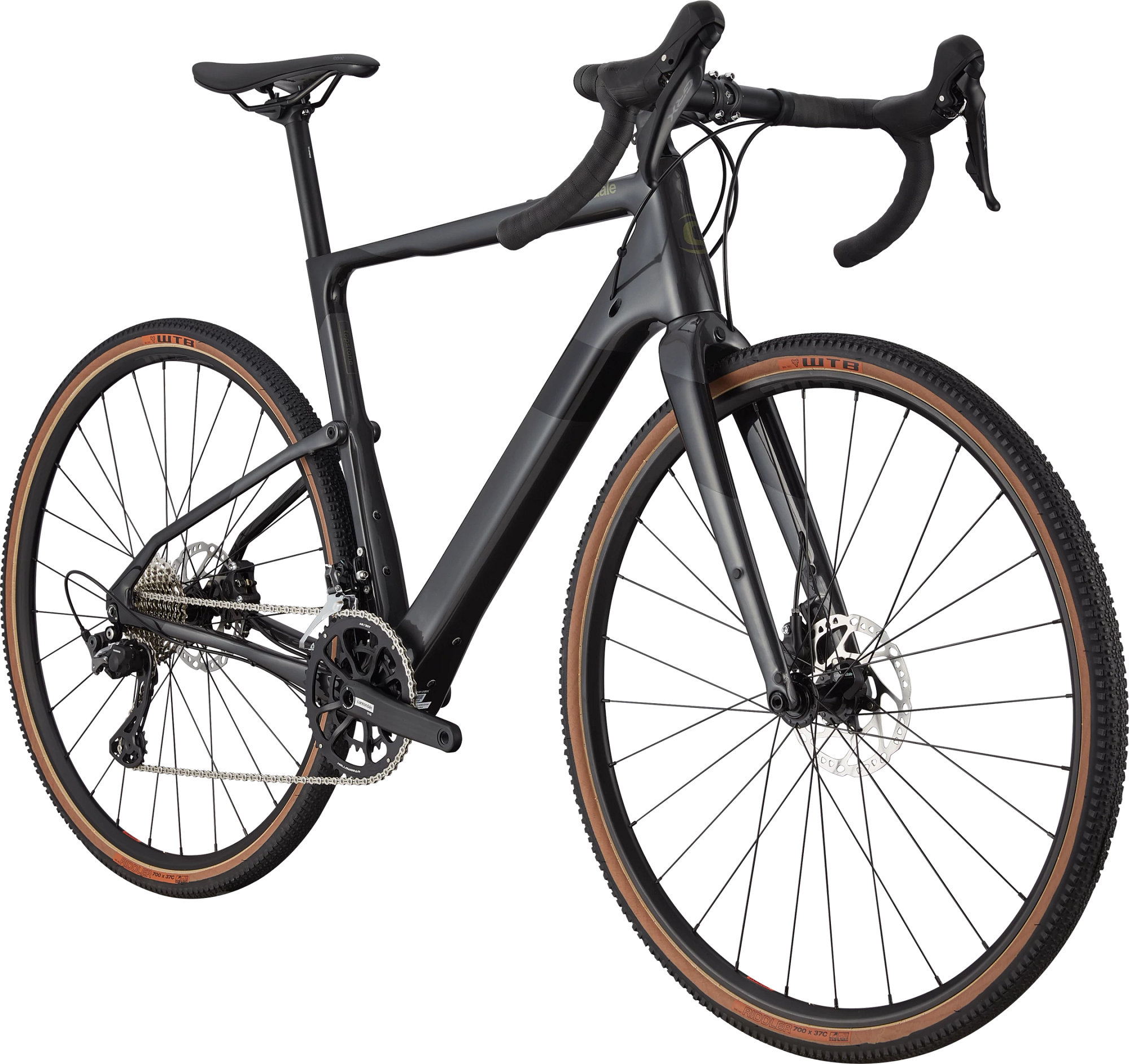

Cannondale Topstone Carbon 5 Road Bike 2022

Cannondale 700 M Topstone Carbon 5 Road Bike 2022

More Give. More Go. - An unprecedented gravel bike. Rear suspension and fast-rolling 700c wheels offer unmatched comfort, control and speed from tarmac to outback.

Where it thrives - Gravel roads, Up and down hills, Out in the elements

What it's built for - Handling, Comfort, Traction

 Highlights

• BallisTec carbon frameset with Kingpin suspension
• Shimano GRX 800/600 11-speed shifting / GRX 400 hydraulic disc brakes
• Integrated Cannondale App connectivity

Specs

Drivetrain

• Bottom Bracket  -  Cannondale BB30
• Chain  -  KMC X11, 11-speed

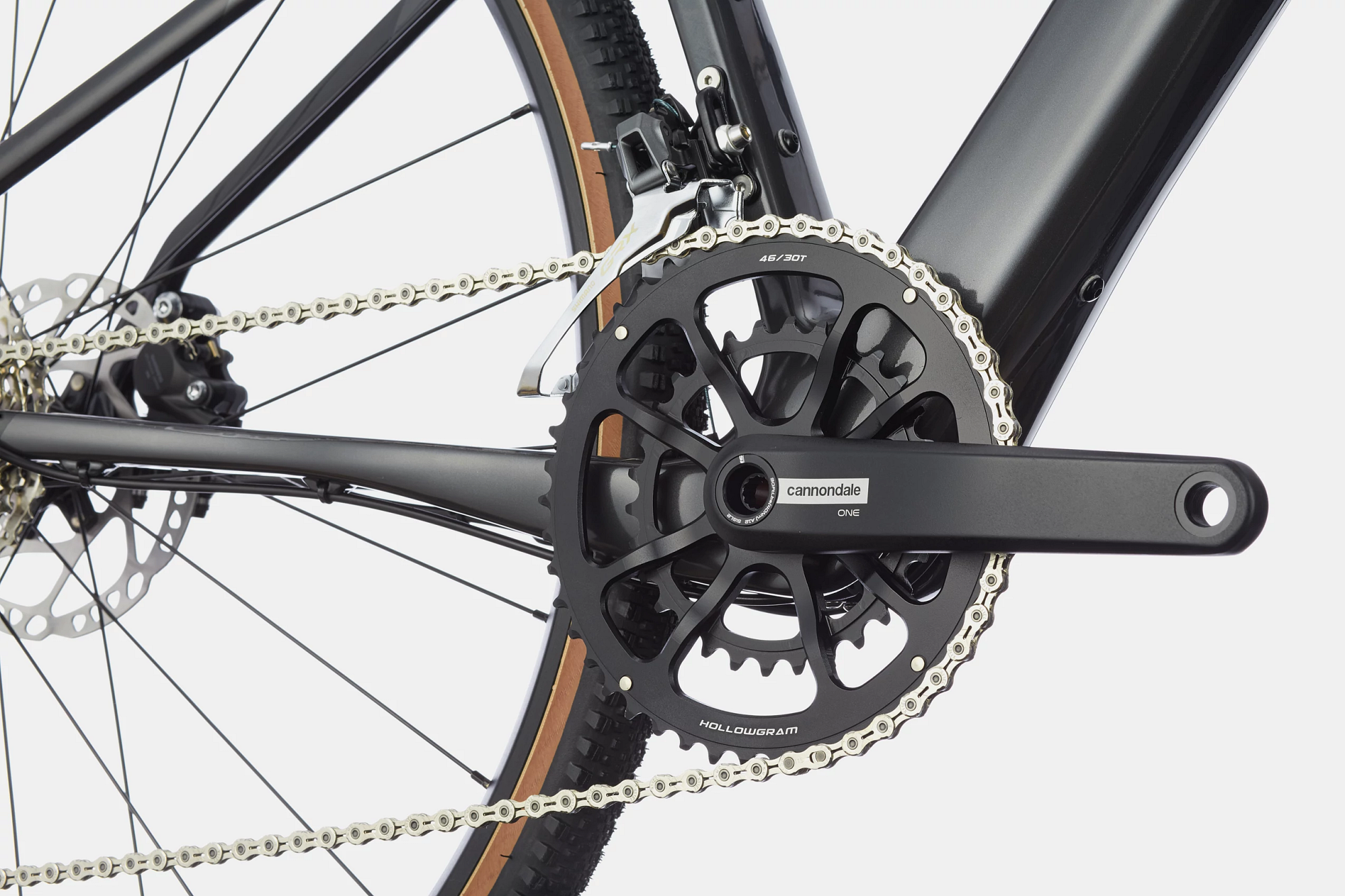

• Crank  -  Cannondale, BB30a, OPI SpideRing, 46/30
• Front Derailleur  -  Shimano GRX 800, braze-on
• Rear Cogs  -  Shimano 105, 11-34, 11-speed

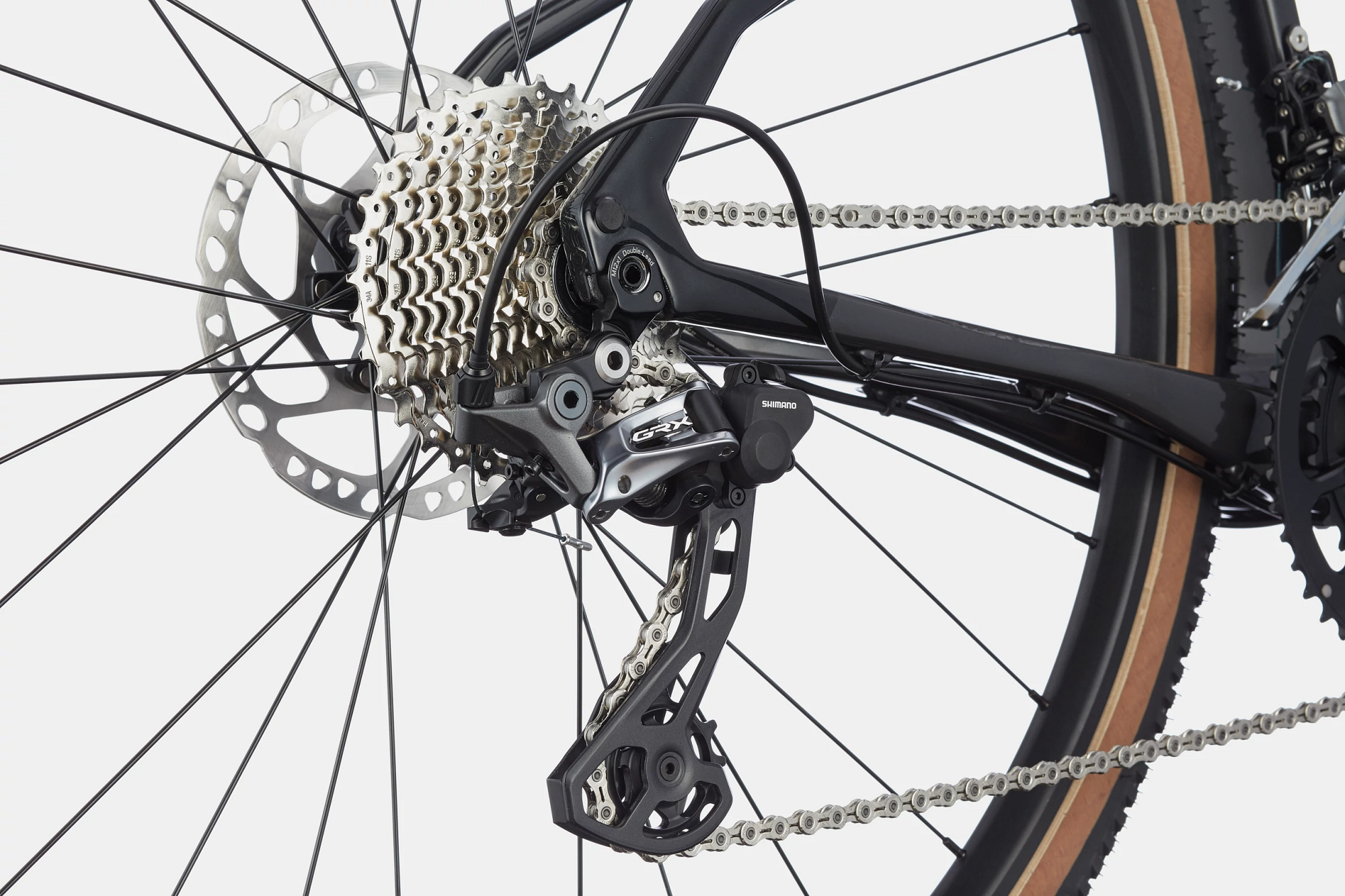

• Rear Derailleur  -  Shimano GRX 812, Shadow RD+

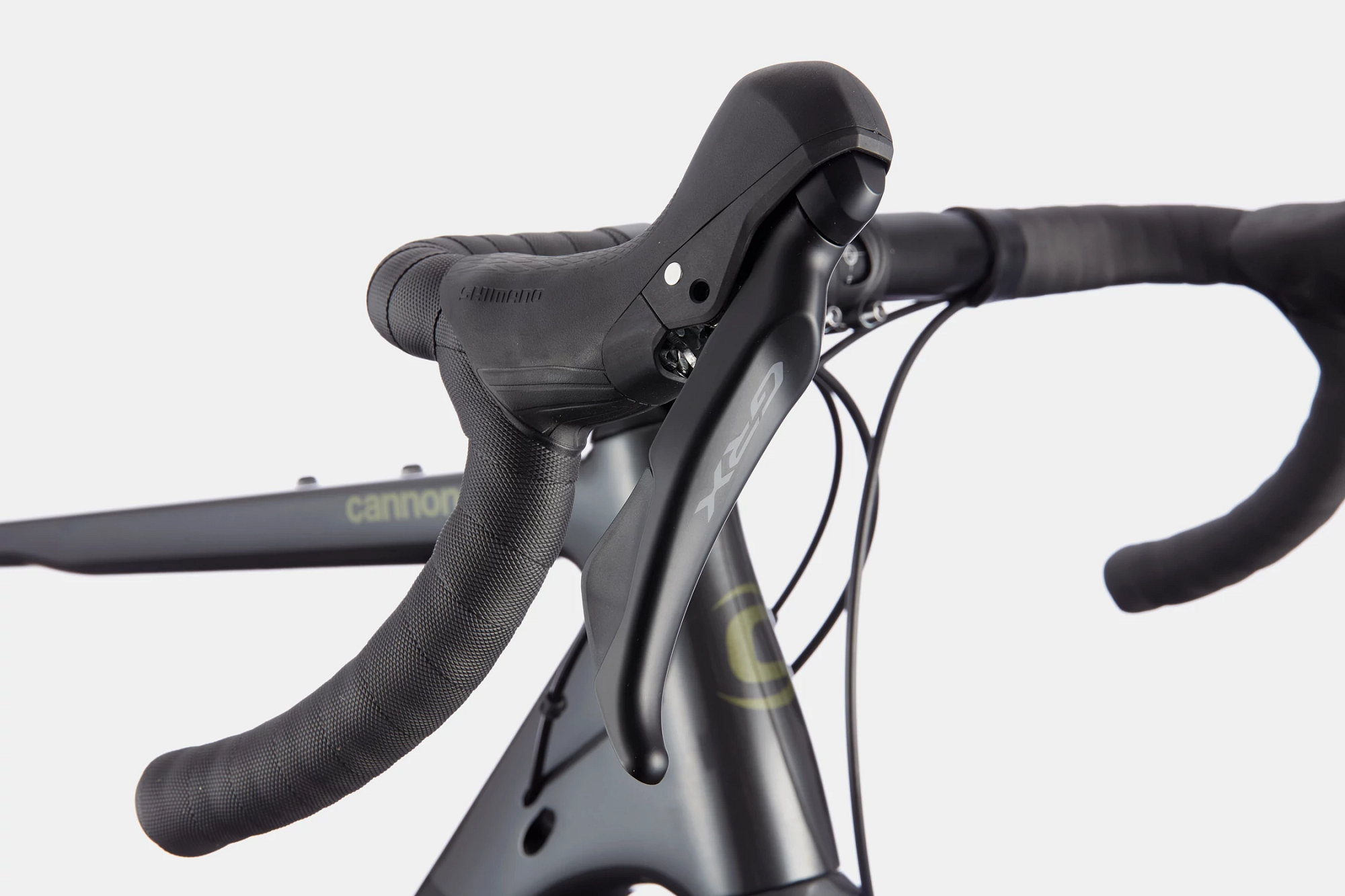

• Shifters  -  Shimano GRX 600, 11-speed

Frameset

• Fork  -  BallisTec Full Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 speed release thru axle
• Frame  -  BallisTec Carbon Frame, Kingpin suspension system, 12x142 Speed Release Thru-axle, dropper post compatible, direct line cable routing
• Headset  -  Integrated, 1-1/8" - 1.5"

Wheels

• Front Hub  -  Formula cartridge bearing, Centerlock, 12x100mm
• Rear Hub  -  Formula cartridge bearing, Centerlock, 12x142mm
• Rims  -  WTB ST i23 TCS, 28h, tubeless ready
• Spokes  -  Stainless Steel, 14g
• Tire Size  -  37
• Tires  -  WTB Riddler TCS Light, 700 x 37c, tubeless ready
• Wheel Size  -  700c

Brakes

• Brake Levers  -  Shimano GRX 600 hydraulic disc
• Brakes  -  Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotor

Components

• Grips  -  Cannondale Bar Tape, 3.5mm

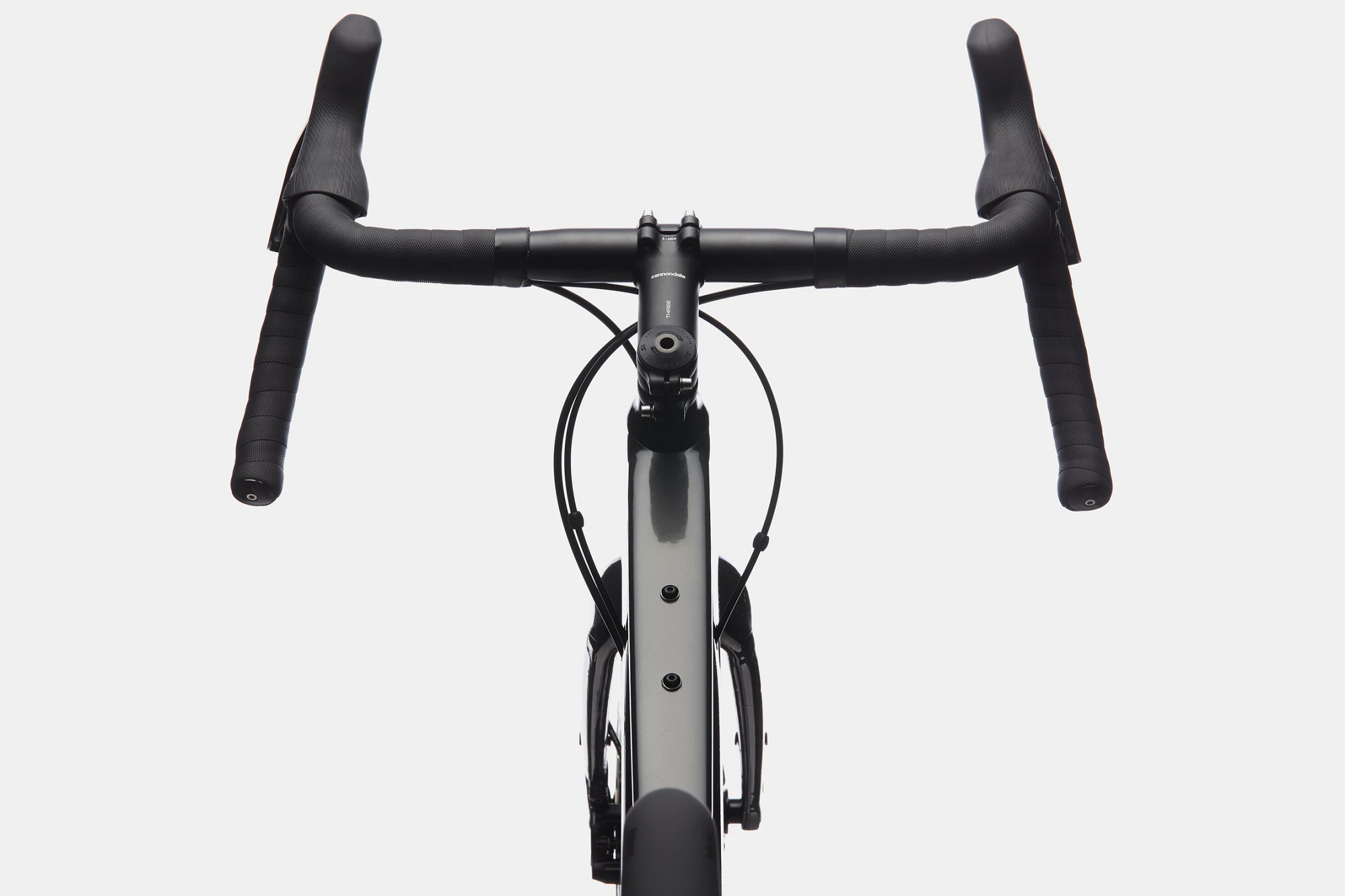

• Handlebar  -  Cannondale 3, butted 6061 alloy, 16 deg flare drop
• Saddle  -  Fizik New Aliante R5, 150mm width, S-alloy rails
• Seatpost  -  Cannondale 3, 6061 Alloy, 27.2 x 350mm
• Stem  -  Cannondale 3, 6061 Alloy, 31.8, 7°
