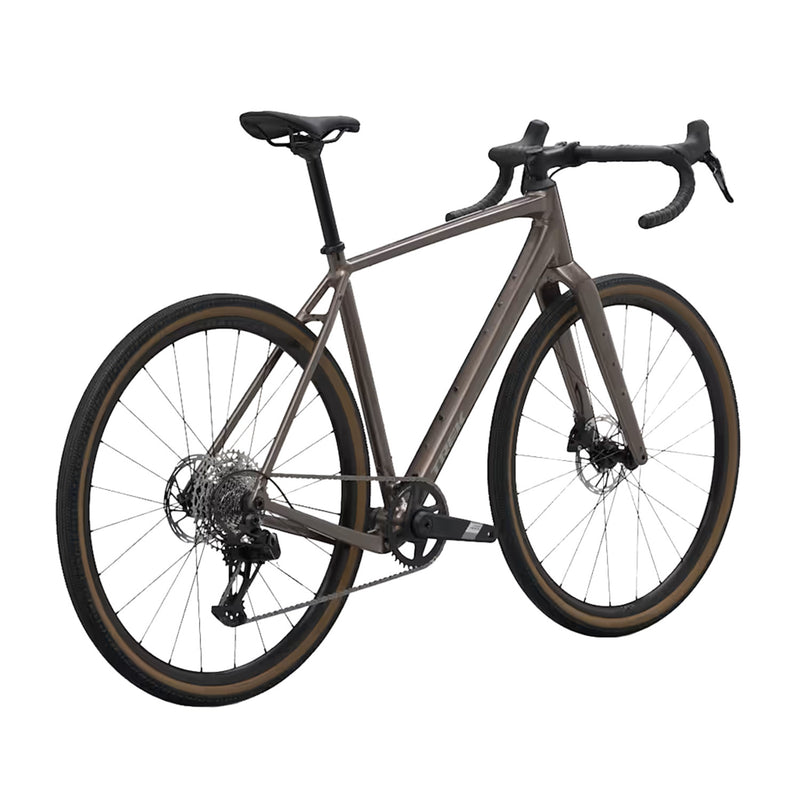

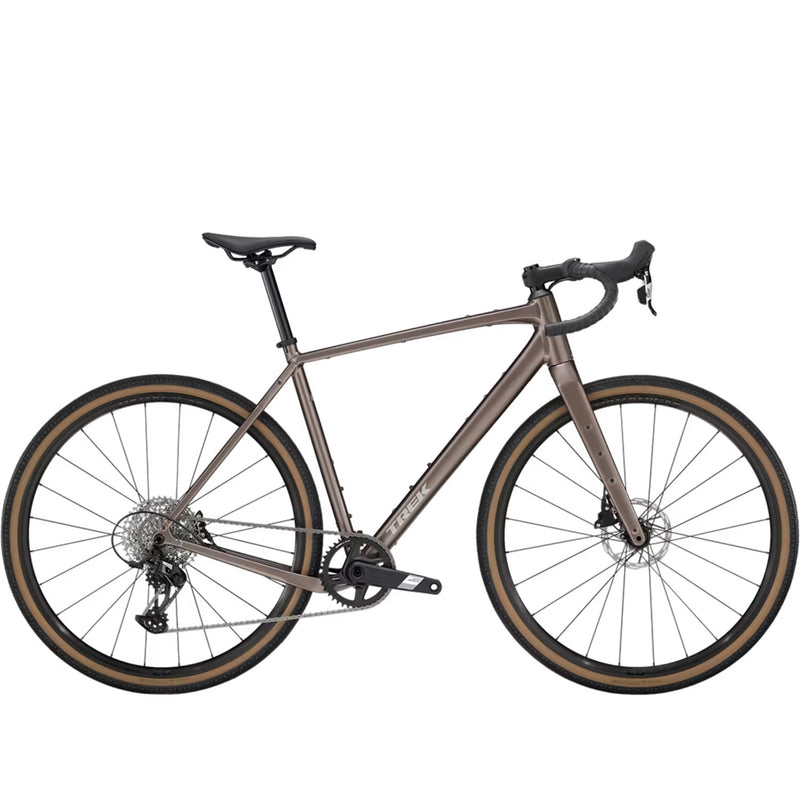

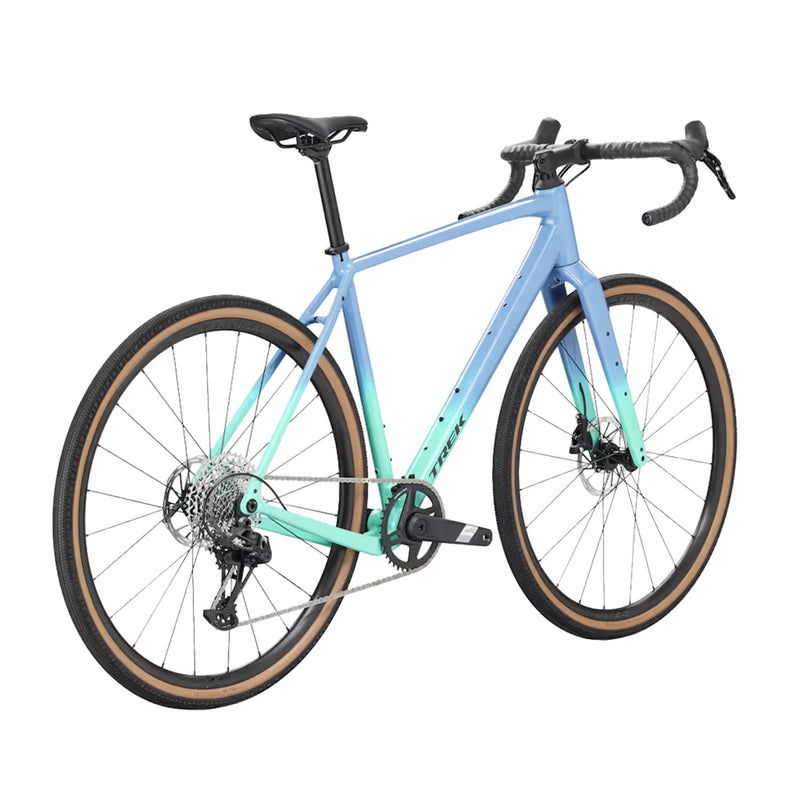

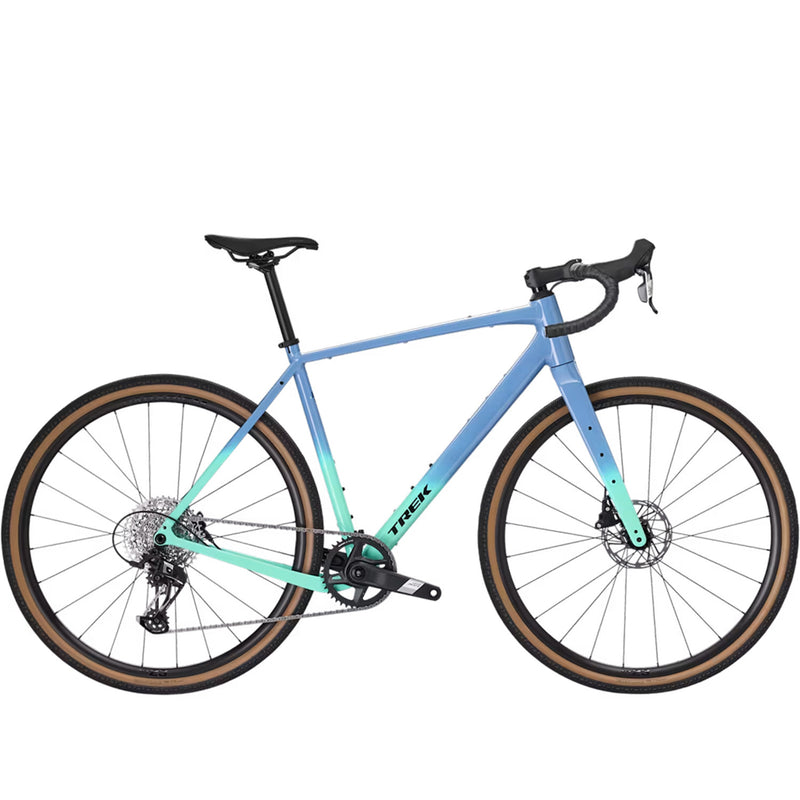

Checkpoint ALR 5 is an aluminum gravel bike built for riders who want to go farther, faster. Its modern endurance geometry pairs with a carbon fork for road-smoothing comfort, while clearance for up to 50mm tires adds traction and confidence on rough terrain. A SRAM Apex XPLR 12-speed drivetrain, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels, and plenty of mounts for bags and gear make it ready for big adventures.
Specifications:
- Frame - 300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle

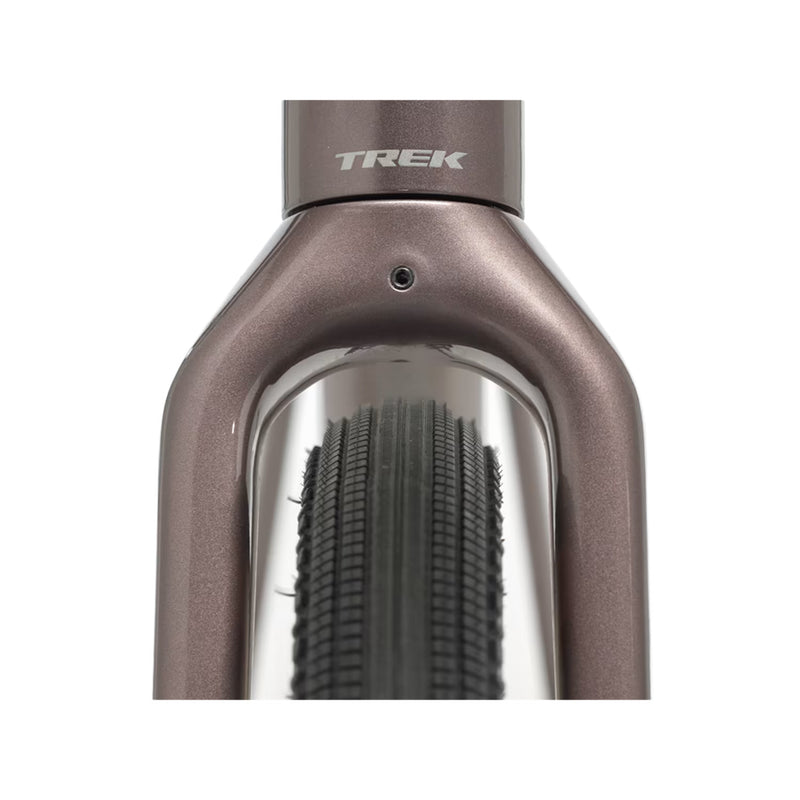

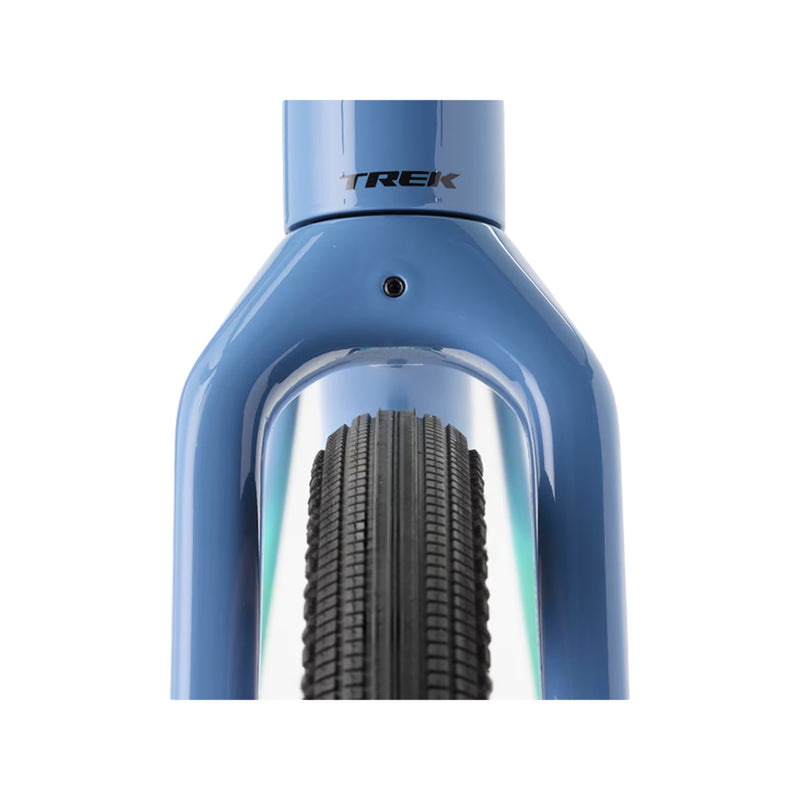

- Fork - Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
-
Shifter - SRAM Apex, 12 speed

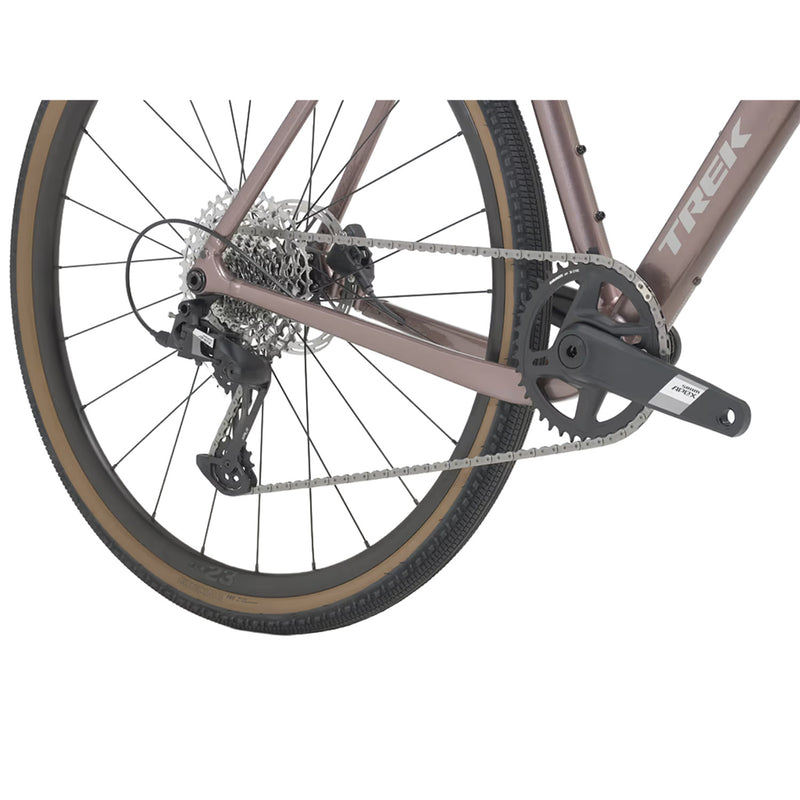

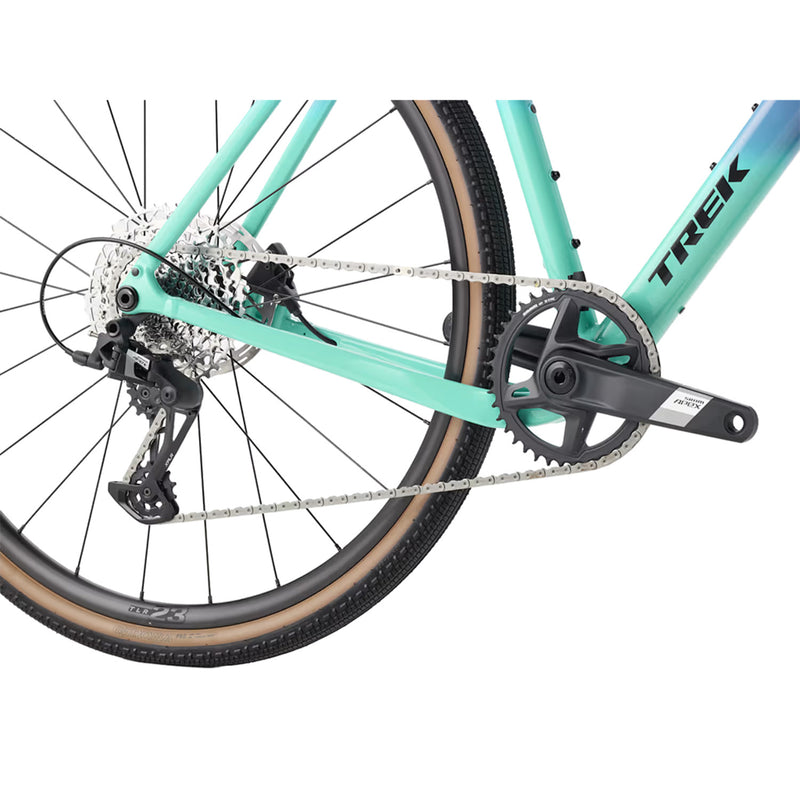

- Rear Derailleur - SRAM Apex XPLR, 44T max cog
-
Crank - Size: XS, S-SRAM Apex 1, 40T, DUB Wide, 165mm length, Size: M, ML-SRAM Apex 1, 40T, DUB Wide, 170mm length, Size: L, XL-SRAM Apex 1, 40T, DUB Wide, 172.5mm length
- Bottom Bracket - SRAM DUB Wide, T47 threaded, internal bearing
- Cassette - SRAM XPLR PG-1231, 11-44, 12 speed
- Chain - SRAM Apex, 12 speed
- Max Chainring Size - 1x:44 2x: 46/30
- Hub Front - Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- Skewer Front - Bontrager Switch chamfered thru axle
- Hub Rear - Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
- Skewer Rear - Bontrager Switch chamfered thru axle, removable lever
- Rim - Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
- Spokes - 14g stainless steel, black
- Tire - Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire Part - Bontrager TLR sealant, 6oz
- Max Tire Size - 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle - Verse Short Comp, steel rails, 145mm width
-
Seatpost - Bontrager alloy, 27.2mm, 12mm offset, 330mm length

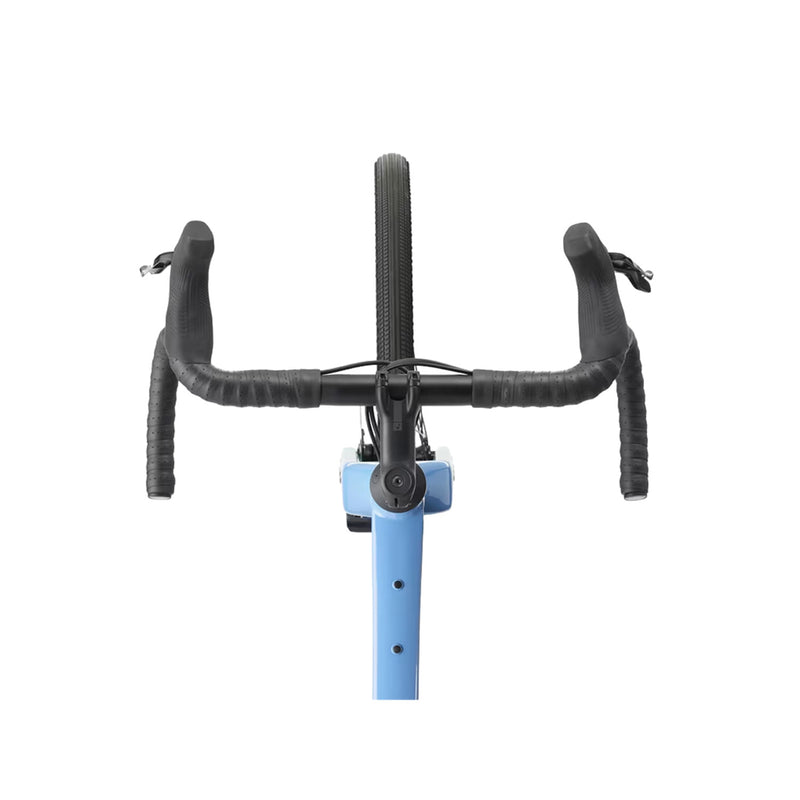

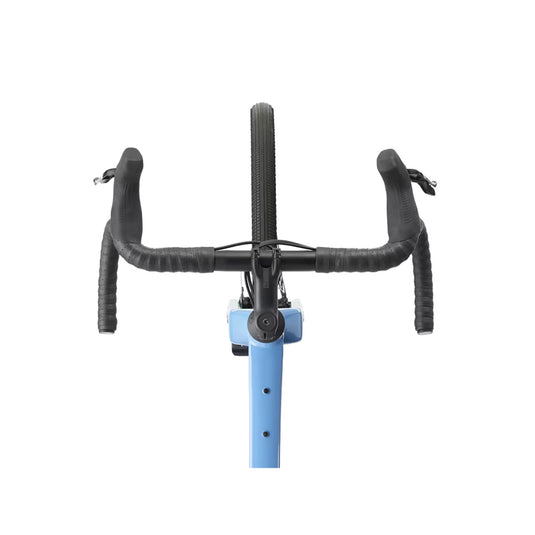

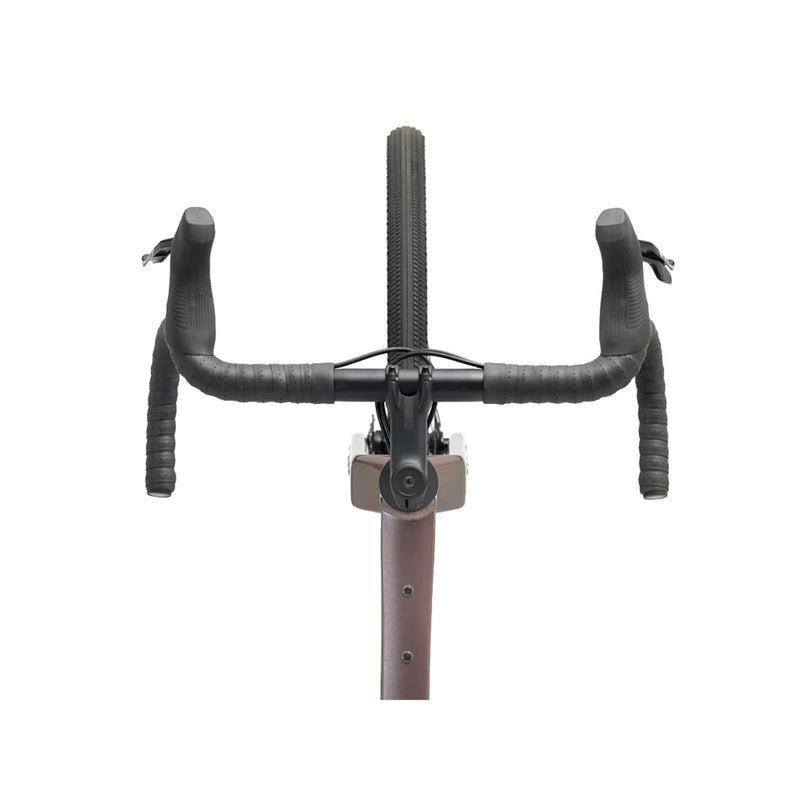

- Handlebar - Size: XS, S-Bontrager Elite Gravel, alloy, 40cm width, Size: M, ML-Bontrager Elite Gravel, alloy, 42cm width, Size: L-Bontrager Elite Gravel, alloy, 44cm width, Size: XL-Bontrager Elite Gravel, alloy, 46cm width
- Handlebar Tape - Bontrager Supertack Perf tape
- Stem - Size: XS-Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length, Size: S, M-Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length, Size: ML, L-Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length, Size: XL-Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Brake - SRAM Apex D1 hydraulic disc, flat mount
- Brake Rotor - SRAM Paceline, rounded, centerlock, 160mm
- Brake Lever - SRAM Apex, 12 speed
- Rotor Size - Max brake rotor sizes: 180mm front & rear
*Specifications are subject to change without notice
|
