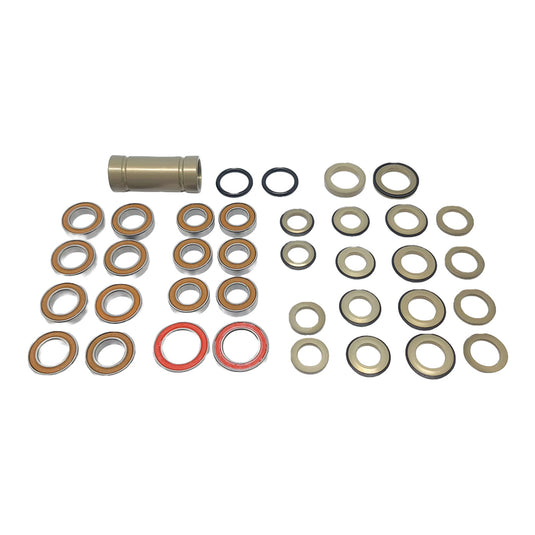

Suspension pivot bearing kit for 2016 - 2018 Stumpjumper FSR (I1) bikes with all bearings and spacers
- Horst Link pivot and Shock Link to Extension pivot Bearing: 6801V-2RS - 12mm ID x 21mm OD x 5mm W - 8 pcs.
- Shock Link to Seat tube pivot and Shock Link to Seatstay pivot Bearing: 6800V-2RS - 10mm ID x 19mm OD x 5mm W - 4 pcs.
- Main Pivot (Chainstay) Bearing: 1524F - 15mm ID x 24mm OD x 5mm W - 2 pcs.
- Horst Link pivot Outer Spacer with Dust Shield: 12.1mm ID x 20mm OD x 2.5mm W - 4 pcs. (Chamfer faces Bearing)
- Shock Link to Seatstay pivot Outer Spacer with Dust Shield: 10.1mm ID x 18mm OD x 2.5mm W - 4 pcs. (Chamfer faces Bearing)
- Horst Link pivot middle Spacer: 12.1mm ID x 18.5mm OD x 2mm W - 2 pcs.
- Shock Link to Seatstay pivot Outer Spacer with Dust Shield: 10.1mm ID x 16.5mm OD x 2mm W - 2 pcs.
- Shock Link to Seat tube pivot Spacer with Dust Shield: 10.1mm ID x 16.5mm OD x 3mm W - 2 pcs. (Chamfer faces Bearing)
- Main Pivot Sleeve: 15mm ID x 19mm OD x 44mm W - 1 pc.
- Main Pivot (Driveside) Spacer: 15.1mm ID x 21.6mm OD x 3.9mm W - 1 pc.
Used on following:
- 2018 Stumpjumper Pro 29/6Fattie
- 2018 Stumpjumper Pro 27.5
- 2018 Stumpjumper Expert 6Fattie/29
- 2018 Stumpjumper Expert 29/6Fattie
- 2018 Stumpjumper Expert 27.5
- 2018 Stumpjumper Expert 11m - 6Fattie
- 2018 Stumpjumper Expert 11m - 27.5
- 2018 Stumpjumper Comp Carbon 6Fattie/29
- 2018 Stumpjumper Comp Carbon 29/6Fattie
- 2018 Stumpjumper Comp Carbon 27.5
- 2018 Stumpjumper Comp Alloy 6Fattie/29
- 2018 Stumpjumper Comp Alloy 29/6Fattie
- 2018 Stumpjumper Comp Alloy 27.5
- 2018 Stumpjumper Comp Alloy 27.5
- 2018 Stumpjumper Coil Carbon 29/6Fattie
- 2018 SJ FSR EXPERT CARBON 29 - WF
- 2018 SJ FSR EXPERT CARBON 27.5 - WF
- 2018 S-Works Stumpjumper Carbon 29/6Fattie Frame
- 2018 S-Works Stumpjumper 6Fattie
- 2018 S-Works Stumpjumper 29/6Fattie
- 2018 S-Works Stumpjumper 27.5 Frame
- 2018 S-Works Stumpjumper 27.5
- 2018 Rhyme Expert Carbon 27.5
- 2018 Rhyme Comp Carbon 27.5
- 2018 Rhyme Comp 27.5
- 2017 Stumpjumper FSR Pro Carbon 6Fattie
- 2017 Stumpjumper FSR Pro Carbon 29
- 2017 Stumpjumper FSR Expert Carbon 6Fattie
- 2017 Stumpjumper FSR Expert Carbon 650b
- 2017 Stumpjumper FSR Expert Carbon 29
- 2017 Stumpjumper FSR Expert 6Fattie
- 2017 Stumpjumper FSR Expert 6Fattie
- 2017 Stumpjumper FSR Expert 650b
- 2017 Stumpjumper FSR Comp Carbon 6Fattie
- 2017 Stumpjumper FSR Comp Carbon 650b
- 2017 Stumpjumper FSR Comp Carbon 29
- 2017 Stumpjumper FSR Comp 6Fattie
- 2017 Stumpjumper FSR Comp 650b
- 2017 Stumpjumper FSR Comp 29
- 2017 S-Works Stumpjumper FSR 6Fattie
- 2017 S-Works Stumpjumper FSR 6Fattie
- 2017 S-Works Stumpjumper FSR 6Fattie
- 2017 S-Works Stumpjumper FSR 650b Frame
- 2017 S-Works Stumpjumper FSR 650b
- 2017 S-Works Stumpjumper FSR 650b
- 2017 S-Works Stumpjumper FSR 29 Frame
- 2017 S-Works Stumpjumper FSR 29
- 2017 Rhyme Pro Carbon 6Fattie
- 2017 Rhyme Comp Carbon 6Fattie
- 2017 Rhyme Comp Carbon 650b
- 2017 Rhyme Comp 6Fattie
- 2017 Rhyme Comp 650b
- 2016 Stumpjumper FSR Expert Carbon 650B Warranty Replacement Frame
- 2016 Stumpjumper FSR Expert Carbon 29 Warranty Replacement Frame
- 2016 Stumpjumper FSR Expert 6Fattie
- 2016 Stumpjumper FSR Expert 650b
- 2016 Stumpjumper FSR Expert 29
- 2016 Stumpjumper FSR Elite 650b
- 2016 Stumpjumper FSR Elite 29
- 2016 Stumpjumper FSR Comp Carbon 6Fattie Warranty Replacement Frame
- 2016 Stumpjumper FSR Comp Carbon 6Fattie
- 2016 Stumpjumper FSR Comp Carbon 650b
- 2016 Stumpjumper FSR Comp Carbon 650B Warranty Replacement Frame
- 2016 Stumpjumper FSR Comp Carbon 29 Warranty Replacement Frame
- 2016 Stumpjumper FSR Comp Carbon 29
- 2016 Stumpjumper FSR Comp 6Fattie Warranty Replacement Frame
- 2016 Stumpjumper FSR Comp 6Fattie
- 2016 Stumpjumper FSR Comp 650b
- 2016 Stumpjumper FSR Comp 650B Warranty Replacement Frame
- 2016 Stumpjumper FSR Comp 29 Warranty Replacement Frame
- 2016 Stumpjumper FSR Comp 29
- 2016 Stumpjumper FSR Carbon 6Fattie Frame
- 2016 Stumpjumper FSR Carbon 6Fafttie Warranty Replacement Frame
- 2016 Stumpjumper FSR Carbon 650b Frame
- 2016 Stumpjumper FSR Carbon 29 Frame
- 2016 S-Works Stumpjumper FSR Carbon 6FATTIE Warranty Replacement Frame
- 2016 S-Works Stumpjumper FSR Carbon 650 Warranty Replacement Frame
- 2016 S-Works Stumpjumper FSR Carbon 29 Warranty Replacement Frame
- 2016 S-Works Stumpjumper FSR 6Fattie
- 2016 S-Works Stumpjumper FSR 650b Frame
- 2016 S-Works Stumpjumper FSR 650b
- 2016 S-Works Stumpjumper FSR 29 Frame
- 2016 S-Works Stumpjumper FSR 29
- 2016 Rhyme FSR Expert Carbon 6Fattie Warranty Replacement Frame
- 2016 Rhyme FSR Expert Carbon 6Fattie
- 2016 Rhyme FSR Expert Carbon 65B Warranty Replacement Frame
- 2016 Rhyme FSR Expert Carbon 650b
- 2016 Rhyme FSR Comp Carbon 6Fattie
- 2016 Rhyme FSR Comp Carbon 650b
- 2016 Rhyme FSR Comp 6Fattie Warranty Replacement Frame
- 2016 Rhyme FSR Comp 6Fattie
- 2016 Rhyme FSR Comp 650b Warranty Replacement Frame
- 2016 Rhyme FSR Comp 650b
- 2015 Stumpjumper FSR Comp EVO
|
