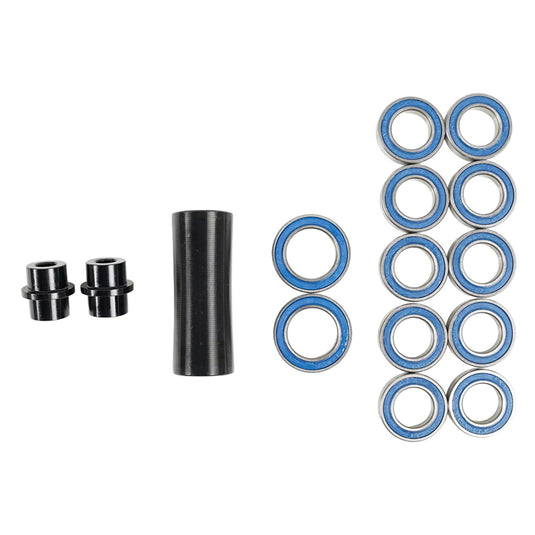

Suspension pivot bearing kit for 2024 Status 140 2 and Status 170 2 model bikes with the chainstay & Horst pivot middle spacers.
- Main Pivot Bearings (Chainstay/Front Triangle): 6802-2RS - 15mm ID x 24mm Od x 5mm Width - 2 pcs.
- Main Pivot Center Sleeve Spacer: 15mm ID x 18.5mm OD x 48mm Length - 1 pcs.
- Shock Link to Seat Tube Pivot Bearings: 6801-2RS - 12mm ID x 21mm OD x 5mm Width - 2 pcs.
- Shock Link to Shock Extension Pivot Bearings: 6801-2RS - 12mm ID x 21mm OD x 5mm Width - 2 pcs.
- Shock Link to Seatstay Pivot Bearings: 6801-2RS - 12mm ID x 21mm OD x 5mm Width - 2 pcs.
- Seatstay Drop-Out / Horst Pivot Bearings: 6801-2RS - 12mm ID x 21mm OD x 5mm Width - 4 pcs.
- Seatstay Drop-Out / Horst Pivot Bearing Center Spacers: 16mm OD x 2mm Width Center Flange x 6.1mm ID x 12mm Width x 16mm Length - 2 pcs
Used for the following bikes:
- 2026 STATUS 2 170 ZERO
- 2026 STATUS 2 170 DH
- 2026 STATUS 2 170
- 2026 STATUS 2 140 ZERO
- 2025 STATUS 2 140 ZERO
- 2025 STATUS 2 140
- 2024 STATUS 2 170 ZERO
- 2024 STATUS 2 170 Frameset
- 2024 STATUS 2 170 DH
- 2024 STATUS 2 170
- 2024 STATUS 2 140 ZERO
- 2024 STATUS 2 140
|
