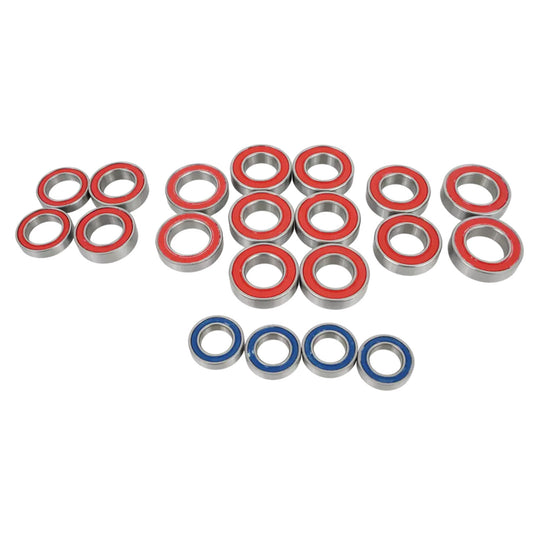

Suspension pivot bearing kit for 2019 - 2023 Demo FSR (F1) bikes with bearings only
- Mid Link to Lower Link pivot, Upper Link to Seat Tube pivot, Mid Link to Seatstay pivot and Upper Link to Seatstay pivot Bearing: 6902-2RS - 15mm ID x 28mm OD x 7mm W - 8 pcs.
- Horst Link pivot Bearing: 6801-2RS - 12mm ID x 21mm OD x 5mm W - 4 pcs.
- Lower Link to Mid Link pivot Bearing: 15267 - 15mm ID x 26mm OD x 7mm W - 2 pcs.
- Forward Shock Eye Bearing: 6802-2RS - 15mm ID x 24mm OD x 5mm W - 2 pcs.
- Main Pivot (Chainstay) Bearing: 17286 - 17mm ID x 28mm OD x 6mm W - 2 pcs.
- Main Pivot (Lower Link) Bearing: 6903-2RS - 17mm ID x 30mm OD x 7mm W - 2 pcs
Used on the following:
- 2025 Demo Race Frameset
- 2025 Demo Race
- 2024 Demo Race Frameset
- 2024 Demo Race
- 2023 Demo Race Frameset
- 2023 Demo Race
- 2023 Demo Expert
- 2022 Demo Race Frameset
- 2022 Demo Race
- 2022 Demo Expert
- 2021 Demo Race Frameset
- 2021 Demo Race
- 2021 Demo Expert
- 2020 Demo Race 29 Frame
- 2020 Demo Race 29
- 2020 Demo Expert 29
- 2019 Demo Race 29 Frame
- 2019 Demo Race 29
- 2019 Demo Expert 29
|
