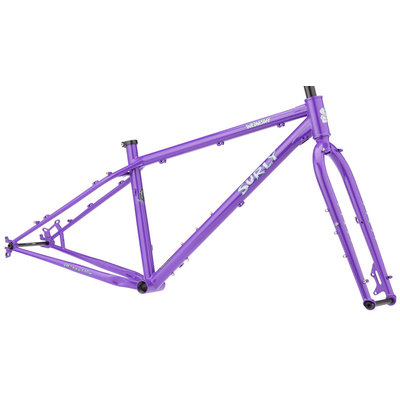

Surly Wednesday Fat Bike Frameset - 26" Steel All-Natural Grape

The All-Around Fat Bike
Wednesday sits in the middle of our Trail category, but don’t let that fool you into thinking that’s its only use. With Wednesday, we borrowed elements from some of our Trail and Touring models to create a versatile fat tire trail ...More information
  • Brand:Surly
  • Availability: In stock


The All-Around Fat Bike

Wednesday sits in the middle of our Trail category, but don’t let that fool you into thinking that’s its only use. With Wednesday, we borrowed elements from some of our Trail and Touring models to create a versatile fat tire trail bike that can truly handle anything you want to attempt.

If you do an equal amount of off-road touring as you do hitting trails, Wednesday’s ability to play both parts equally will suit you well. Or, if you’re looking for a fat bike and don’t need the fattest tires on the market, Wednesday’s 26 x 4.6” tire clearance is just the ticket.

“Any day of the week’s a great day to ride a Wednesday.”

  • Modern mountain standards: stealth dropper post routing, 44mm headtube, suspension correction, front and rear thru-axles
  • Full suite of useful braze-ons: front and rear racks, multiple sets of three-pack mounts, fenders
  • Full-forward, short chainstay position: 26 x 3.8˝ tires on 80mm rims; full-rearward, longer chainstay position: 26 x 4.6˝ tires on an 80mm rim



Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Horizontal slotted with optional vertical dumpout

Rear Hub Spacing

12 x 177mm (Surly axle included)

10 x 170mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing

15 x 150mm (Surly axle included)

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø44mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

ZS44/28.6

Stock Headset Lower (S.H.I.S.)

EC44/30

Seat Collar

Ø33.1mm

Seatpost

Ø30.9mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø34.9mm)

Max Chainring (CL)[3]

1x (Fat bike 170): 34T

2x (Fat bike 170): 26/38T

2x (Surly OD): 22/36T

Bottom Bracket

100mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

26 x 4.6" (rear axle position)

26 x 3.8" (front axle position)

29 x 3.0"

Tire Clearance Fork [1]

26 x 5.25"

29 x 3.0"

Rigid Fork Spec

468 x 47mm

Max Suspension Fork Length [4]

511 x 51mm (Fatbike 100mm)

Bottle Mounts Frame

2 Standard (XS - M)

3 Standard (L - XL)

Bottle Mounts Fork

2 Three-Pack

Rack Mounts Frame

Yes (upper and lower threaded)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

N/A

Other Features

Internal dropper post routing compatible

[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)

  •
