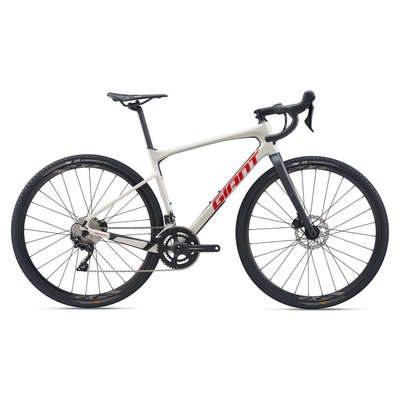

Giant Revolt Advanced 2 Bicycle 2020

Giant Revolt Advanced 2 Bicycle 2020

Almost anything goes in gravel racing and riding. It’s a mixed-up challenge of speed, endurance and handling. This high-performance all-rounder does it all. It’s smooth, it’s efficient, and it’s your new best friend for pushing limits on roads, gravel and dirt.

This high-performance all-rounder made a big splash with its 2018 debut, landing podium finishes at big-time gravel events including Grinduro and the unofficial “Gravel Worlds” in the U.S. It’s designed around a lightweight Advanced composite frameset with gravel-riding geometry, so you can tackle long, hard rides with greater control and less fatigue. A composite fork eats up bumps, and the D-Fuse seatpost and Contact XR D-Fuse handlebar absorb shocks and vibrations. The frame is integrated for disc brakes and has clearance for larger tires up to 45c so you can float through the rough stuff. Add in some clever frame details, including the X-Defender downtube protector and smart mount system for racks and accessories, and you have everything you need for your gravel adventures.

Versatile gravel geometry

All-new gravel-riding geometry features endurance positioning and shorter chainstays. The result is precise handling, agility and control in all situations, from out-of-the-saddle road climbs to fast and rugged dirt road descents.

Tuned compliance

An innovative new Contact XR D-Fuse handlebar and D-Fuse seatpost work as a system to help absorb shock without sacrificing the stiffness needed for aggressive road performance. Added frame clearance for high-volume 45c tires help smooth out rough roads, gravel and dirt.

All-rounder efficiency

Advanced composite frame maximizes pedaling power, giving Revolt Advanced a smooth, fast ride quality on variable riding surfaces.

• Sizes                                 XS, S, M, ML, L, XL
• Colors                              Gray Beige, Blue Atoll
• Frame                              Advanced-Grade Composite, 12x142mm thru-axle, disc
• Fork                                 Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock                               N/A
• Handlebar                      Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
• Stem                               Giant Contact, 8-degree
• Seatpost                         Giant D-Fuse, composite
• Saddle                             Giant Contact (neutral)
• Pedals                               N/A
• Shifters                           Shimano 105
• Front Derailleur             Shimano 105
• Rear Derailleur               Shimano 105
• Brakes                              Shimano 105 hydraulic
• Brake Levers                    Shimano 105 hydraulic
• Cassette                           Shimano 105, 11x34
• Chain                               KMC X11 with Missing Link
• Crankset                          Praxis Alba, 32/48
• Bottom Bracket              Praxis M24 BB86, press fit
• Rims                                Giant S-X2 Disc wheelset
• Hubs                                Giant S-X2 Disc wheelset
• Spokes                             Giant S-X2 Disc wheelset
• Tires                                Giant Crosscut AT 1, 700x38
