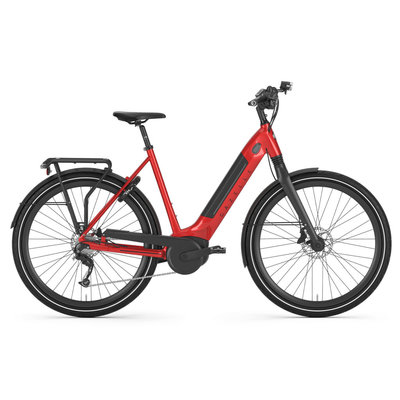

Gazelle Ultimate T10 HMB Low Step E-Bike 2023
$3,999.00 $3,199.00

Gazelle Ultimate T10 HMB Low Step E-Bike 2023

The Gazelle Ultimate T10 is a top of the range trekking e-bike, refined down to the last detail. The first-class groupset including Shimano Deore, Bosch Performance line and ergonomically-shaped handlebar grips enable sporty performance to be achieved. Th ...More information


The Gazelle Ultimate T10 is a top of the range trekking e-bike, refined down to the last detail. The first-class groupset including Shimano Deore, Bosch Performance line and ergonomically-shaped handlebar grips enable sporty performance to be achieved. The Ultimate T10 HMB is delightfully stable on the road thanks to the battery and motor integration plus the rigidity of the frame. The dynamic design, high level of comfort and excellent handling make this bike the ideal companion for long recreational trips.

  • Frame shape  -  High-step, low-step
  • Size  -  46, 53, 57
  • Frame description  -  Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
  • Frame material  -  Aluminium
  • Fork material  -  Aluminium
  • Fork suspension type  -  internal to headset
  • Travel Fork  -  40 mm
  • Wheelsize  -  28"
  • Rims  -  Ryde Dutch
  • Tires  -  Schwalbe Energizer Plus
  • Tire color  -  black
  • Gear type  -  derailleur
  • Gears  -  10
  • Rear derailleur  -  Shimano Deore
  • Front chainwheel  -  38
  • Rear chainwheel  -  11-36
  • Brake Front  -  Disc brake with hydraulic control
  • Brake Rear  -  Disc brake with hydraulic control
  • Handlebar description  -  Aluminium, slightly curved model
  • Adjustable stem  -  Yes
  • Grip type  -  Ergon GP1-L, ergonomic
  • Grips  -  Plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
  • Saddle  -  Selle Royal Loire
  • Light front description  -  LED headlamp, on/off switching via display
  • Front light powersource  -  Battery
  • Front light lux  -  50
  • Front light type  -  Axa Blue Line 50
  • Rear light powersource  -  Battery
  • Ebike system short description  -  Bosch
  • Engine location  -  mid-drive motor
  • Max speed (mph)  -  Class 1 (20 mph)
  • Torque  -  65
  • Engine model  -  Bosch Performance Line (65 Nm)
  • Ebike sensors  -  pedal force sensor, rotation sensor, speed sensor
  • Battery type  -  Li-ion
  • Battery position  -  Integrated into frame
  • Battery replaceable  -  Yes
  • Battery system  -  Bosch
  • Amount of support levels  -  4
  • Walk assist  -  Yes
  • Display Model  -  Bosch Purion LCD
  • Lock description  -  Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
  • Lock safety level  -  ART ** certified
  • Lock Type  -  AXA Defender
  • Chaincase description  -  Aluminum
  • Kickstand type  -  drop-down rear stand
  • Chaincase type  -  Chain guard
  • Rear carrier description  -  Aluminum
  • Max. load rear carrier (kg.)  -  25 kg
