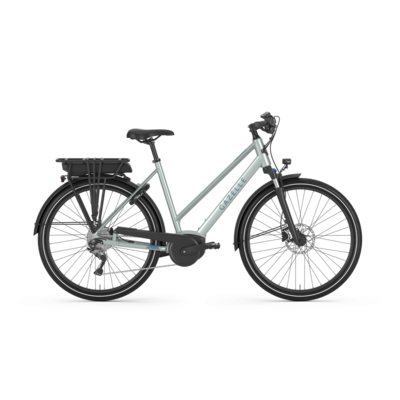

Gazelle Medeo T9 HMB Low Step E-Bike
$2,499.00

Gazelle Medeo T9 HMB Low Step E-Bike

Discover the Gazelle Medeo T9 HMB
The Medeo T9 HMB electric bike is the ideal companion to feel the wind in your face and forget about the past while falling in love with bikes all over again. Experience the freedom of a country road and let the powerful ...More information
  • Brand:Gazelle
  • Availability: Out of stock

Out of stock

Discover the Gazelle Medeo T9 HMB

The Medeo T9 HMB electric bike is the ideal companion to feel the wind in your face and forget about the past while falling in love with bikes all over again. Experience the freedom of a country road and let the powerful motor conquer your worries along with any terrain you may encounter. The combination of high quality components and supreme comfort makes this electric bike the complete package.

Braking bliss

Responsive Shimano BL-MT200 hydraulic disc brakes deliver smooth stopping power and confidence for every ride.

Dynamic options

Available in both high and low-step options with different battery configurations, choose the style that suits you best.

Smooth sailing

A Suntour suspension front fork offering 50 mm of travel, combined with wide Schwalbe Big Apple tires provide extra comfort.

Our powerful battery provides excellent range

  • Bosch Active Line Plus motor (50Nm) providing support up to 20 mph with 400Wh battery
  • Dynamic low-step frame with carrier battery, high-step frame with battery on the down tube
  • Smooth derailleur and powerful disc brakes for a comfortable commute and /or recreational trips
  • Suspension front fork combined with wide tires provide extra comfort

 Specifications

Frame/front fork

  • Frame: Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
  • Sitting position: Sporty
  • Integrated cables: Yes
  • Fork: Suntour NEX E25 HLO 50mm
  • Travel fork: 50 mm
  • Chain guard: Plastic
  • Rear carrier: Aluminum MIK system carrier

Wheels/tires

  • Tires: Schwalbe Big Apple, 50-622
  • Tires puncture resistant: Yes
  • Rims: Mach1 ER-10, Double-walled aluminium for extra strong and efficient cycling performance
  • Front hub: Shimano
  • Spokes: Stainless steel, extra strong
  • Fender: Stainless steel

Steering

  • Handlebar: Aluminium, slightly curved model
  • Stem: Steplessly adjustable
  • Steer grip: Plastic wear-resistant handlebar grips for a firm grasp
  • Grip type: Herrmans DD36

Transmission/brake

  • Brake system back: Disc brake with hydraulic control; Shimano BL-MT200, 2 piston 160 mm
  • Brake system front: disc brake with hydraulic control; Shimano BR-MT200, 2 piston 180 mm
  • Shifter: Shimano Acera
  • Crank: aluminum
  • Front chainwheel: 38
  • Rear chainwheel: 11-36
  • Drivetrain: Chain
  • Chain: KMC extra strong, special for e-bike

Saddle

  • Seatpost: Fixed
  • Saddle: DDK, sportive

Lighting

  • Lights front: Axa Compactline 35, LED headlamp, on/off switching via display
  • Front light lux: 35
  • Front light powersource: Battery
  • Light back: Axa Blueline, LED battery supply, on/off switching via display
  • Rear light powersource: Battery

Other

  • Lock type: AXA Defender, Ring lock with an option for a plug-in cable to attach your bike to a fixed object for extra protection against theft
  • Lock safety level: ART ** certified
  • Kickstand: drop-down rear stand, Ursus Mooi

System

  • Display: Bosch Purion LCD
  • Display detachable: No
  • Sensors: rotation sensor; speed sensor; pedal force sensor
  • Engine: Bosch Active Line Plus 3.0 (50Nm), 36V
  • Battery: Low-step: Integrated into carrier, High-step: Integrated into carrier
  • Charger: 4 Ah
  • Battery: 400 Wh
