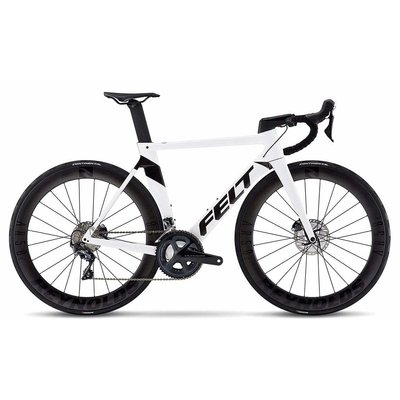

Felt AR Advanced Disc Ultegra Carbon Road Bike 2021
$4,999.95

Felt AR Advanced Disc Ultegra Carbon Road Bike 2021

 AR | Advanced Carbon Disc | Ultegra
Featuring our Advanced-level carbon frame used by pro race teams. Built for those who seek the classic tactile feel of mechanical shifting.

Shimano Ultegra mechanical groupset
Shimano Ultegra hydraulic disc brakes ...More information
  • Brand:Felt
  • Availability: In stock


AR | Advanced Carbon Disc | Ultegra

Featuring our Advanced-level carbon frame used by pro race teams. Built for those who seek the classic tactile feel of mechanical shifting.

  • Shimano Ultegra mechanical groupset
  • Shimano Ultegra hydraulic disc brakes
  • Reynolds AR58 carbon wheels

Detailed Technical Specifications

  • VERSION AR | 5
  • SERIES AR (3.0)
  • MODEL AR | Advanced | Ultegra
  • PRICE $4,999
  • FINISH 1) Aquafresh 2) White
  • SIZES 6 | 48, 51, 54, 56, 58, 61cm
  • FRAME  Felt AeroRoad 3.0 | UHC Advanced + TeXtreme carbon fiber
  • FRAME TECHNOLOGIES   MMC / InsideOut
  • BOTTOM BRACKET TYPE Press-Fit | BB386
  • BRAKE TYPE, REAR Disc, Flat Mount | 25mm thickness, Ø140mm minimum rotor
  • DERAILLEUR HANGER TYPE, FRONT Brazed-On | integrated backup plate, non-replaceable, aluminum
  • DERAILLEUR HANGER TYPE, REAR Standard Mount | TA 12x142 road, replaceable, aluminum
  • HEAD-TUBE TYPE Felt AeroTaper | 1.125-1.25"
  • PROTECTOR TYPE Felt SteererStop integration for replaceable brake and shift protection / Felt CDRoad integration for chain drop protection / Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection
  • ROUTING TYPE   Convertible | semi-hidden for electronic or internal for mechanical
  • SEAT POST / CLAMP TYPE Felt AeroRoad InternaLoc 2.0 | integrated with titanium bolts and high-frequency vibration reducing insert
  • WHEEL TYPE 700c
  • TIRE MAX (CLEARANCE) 30mm (4mm)
  • FORK Felt AeroRoad 3.0 | UHC Advanced + TeXtreme carbon fiber
  • HEADSET IS (NO.44)
  • AXLE, FRONT TA 12x100
  • AXLE, REAR TA 12x142
  • FORK TECHNOLOGIES Monocoque construction / Integrated crown race
  • BRAKE TYPE, FRONT Disc, Flat Mount | Ø140mm minimum rotor
  • FORK OFFSET 48cm: 52mm / 51, 54cm: 47mm / 56, 58, 61cm: 43mm
  • HEADSET SPECIFICATION Top Cap: stem integrated / Top Cover: stem integrated / Top Cover (standard stem): Felt integrated nylon fiber / Bearings: FSA integrated sealed cartridge, MR121 upper, MR168 lower / Spacers: Felt integrated nylon fiber, aero (20mm, 10mm, 2x5mm) / Compression Device: FSA ACR / Compression Ring: FSA H2081A / Crown Race: fork integrated
  • AXLE, FRONT SPECIFICATION Devox AxleTA 123.2 | 118mm + 5.2mm head, M12 x 1.5P x 13mm, Switch lever compatible
  • AXLE, REAR SPECIFICATION Devox AxleTA 170-9 L | 161mm + 9mm head, M12 x P1.0 x 18mm for Syntace X-12, with SL02 Switch hollow lever
  • SPEED 2x11-speed
  • SHIFTERS Shimano Ultegra R8020
  • DERAILLEUR, FRONT Shimano Ultegra R8000, braze-on
  • DERAILLEUR, REAR Shimano Ultegra R8000, short cage
  • CRANK Shimano Ultegra R8000, 52/36T
  • BOTTOM BRACKET Token Ninja Lite, BB386 for Shimano (24mm)
  • CASSETTE Shimano Ultegra R8000, 11-30T
  • CHAIN Shimano Ultegra HG701
  • CRANK LENGTH 48cm: 165mm / 51cm: 170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm
  • BRAKE CALIPERS Shimano Ultegra R8070, hydraulic disc, flat mount
  • BRAKE ROTORS Shimano Ultegra RT800, Center Lock, 160/140mm
  • WHEELS Reynolds AR58 DB Custom, Shimano
  • TIRES Continental Grand Prix 5000, 700x25c
  • TIRE COMPATIBILITY Tubeless Ready
  • RIMS Carbon
  • HANDLEBAR Devox DBar.C0 Aero
  • STEM Felt Sprint | UHC Advanced carbon fiber
  • GRIPS / TAPE Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs
  • HANDLEBAR CLAMP DIAMETER 8mm
  • HANDLEBAR DROP 125mm
  • HANDLEBAR REACH 80mm
  • HANDLEBAR WIDTH 48, 51, 54cm: 40cm / 56, 58, 61cm: 42cm
  • STEM CLAMP DIAMETER 8mm
  • STEM ANGLE -6°
  • STEM LENGTH 48, 51cm: 90mm / 54, 56cm: 100mm / 58cm: 110mm / 61cm: 120mm / Aftermarket: 130, 140mm
  • STEM PARTS & TECHNOLOGIES Integrated / Integrated top cap / Integrated headset top cover / Integrated cable routing / Slotted faceplate for computer direct mount compatibility
  • SEATPOST Felt AeroRoad IL 2.0 | UHC Advanced carbon fiber
  • SADDLE Prologo Dimension 143 T4.0
  • SEATPOST OFFSET 0mm / -20mm
  • SEATPOST LENGTH 350mm *can be cut to length
  • SEATPOST PARTS & TECHNOLOGIES Integrated / Compliance Channels with aero covers / AeroRoad InternaLoc 2.0 seatpost clamping system with high-frequency vibration reducing insert / Patented VariMount (VM) saddle rail clamping system / Integrated battery holder
  • EXTRAS Shimano hose fitting kit (2x olives and connector inserts) / Reynolds tubeless valve stems (2x75mm) / Compliance Channel aero seatpost covers / Carbon assembly paste
  • WEIGHT 33 lb, 8.33 kg
  • WEIGHT DISCLAIMER The most accurate way to determine a product's weight is to have your local dealer weigh it for you. Because we understand that weight is an important metric, we strive to list it when possible. When listed, weight is based on a single sample in a specific size and with all items as shown in the photo. It is not an exact indication of what your bike or frame will weigh, as there are tolerances in many variables involved (size, finish, hardware, components, and accessories). Felt continues to be an industry leader in weight and performance.
  • SPECIFICATION DISCLAIMER Specifications subject to change without notice
